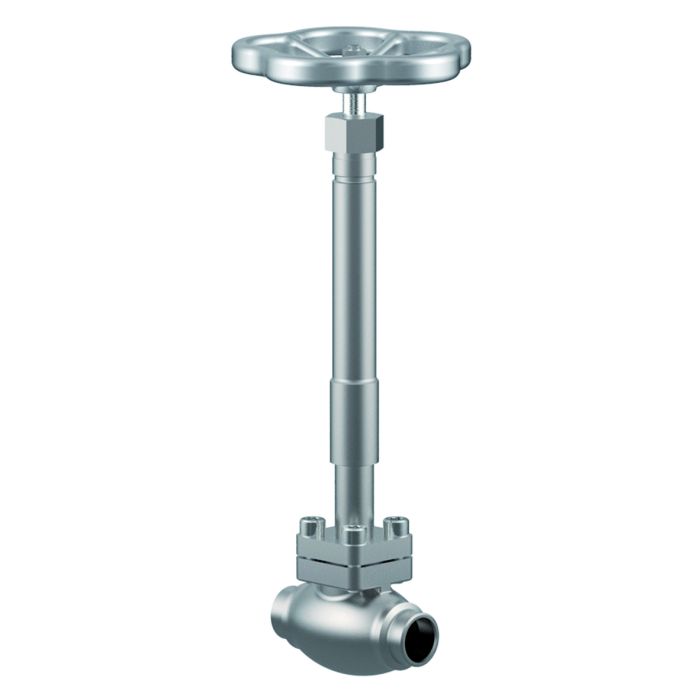

Globe Valve DN15(1/2") H370
Click on the product image for a larger view.
Globe Valve DN15(1/2") H370
Article-No.: 01252.1521.0022PTF
Price
POR
Description
Cryogenic-bellow sealed globe valve DN15 PN50
cleaned and degreased for oxygen service
with bonnet extension H=370mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet 1.4301 st.st.
gland packing graphit/PTFE
insert bush CW452K bronze
connection butt weld for pipe ø21.3mm x 2mm / 1/2"S10
face to face 85mm
seal disc PTFE
cleaned and degreased for oxygen service
with bonnet extension H=370mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet 1.4301 st.st.
gland packing graphit/PTFE
insert bush CW452K bronze
connection butt weld for pipe ø21.3mm x 2mm / 1/2"S10
face to face 85mm
seal disc PTFE
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 01252.1521.0022PTF |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_01252 |
| Type (Series) | 01252 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 15 |
| Nominal pressure | PN 50 |
| max. lift | 7.6 |
| Kvs-value | 4.3 MQH |
| body material | 1.4308 |
| CV-Value | 5,0 gal/min |
| installation height | 370.0 MMT |
| Connection dimension inlet | 21,3 x 2,0 / 1/2'' S10 |
| Connection dimension outlet | 21,3 X 2,0 / 1/2'' S10 |
| Connection inlet | welding end |
| Connection outlet | welding end |
Related Type
Datasheet ID: CR_01252
