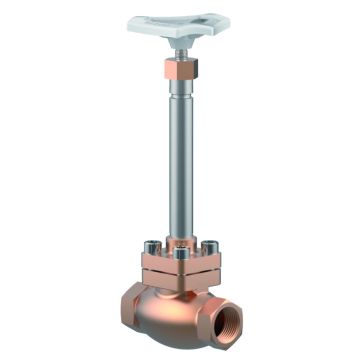

Article-No.: 01315.0400.0016
Price
POR
POR
Globe Valve DN15(1/2") H270
Article-No.: 01315.0400.0016
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01315
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 15
- Nominal pressure:
- PN 50
- Kvs-value:
- 4.3 MQH
- CV-Value:
- 5,0 gal/min
- installation height:
- 270.0 MMT
- Connection dimension inlet:
- 1/2''
- Connection dimension outlet:
- 1/2''
- Connection inlet:
- female thread NPT
- Connection outlet:
- female thread NPT
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR

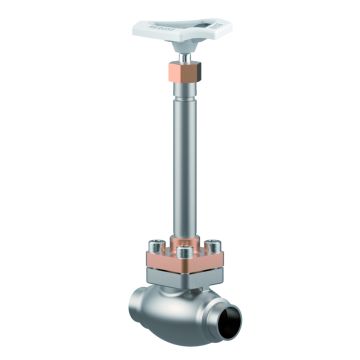

Article-No.: 01321.1521.0011
Price
POR
POR
Globe Valve DN15(1/2") H270
Article-No.: 01321.1521.0011
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01321
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 15
- Nominal pressure:
- PN 50
- Kvs-value:
- 4.3 MQH
- CV-Value:
- 5,0 gal/min
- installation height:
- 270.0 MMT
- Connection dimension inlet:
- 21,3 x 2,0 / 1/2'' S10
- Connection dimension outlet:
- 21,3 X 2,0 / 1/2'' S10
- Connection inlet:
- welding end
- Connection outlet:
- welding end
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR
Article-No.: 01321.1521.0014
Price
POR
POR
Globe Valve DN15(1/2") H270
Article-No.: 01321.1521.0014
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01321
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 15
- Nominal pressure:
- PN 50
- Kvs-value:
- 4.3 MQH
- CV-Value:
- 5,0 gal/min
- installation height:
- 270.0 MMT
- Connection dimension inlet:
- 21,3 / 1/2''
- Connection dimension outlet:
- 21,3 / 1/2''
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR
Article-No.: 01321.2533.0014
Price
POR
POR
Globe Valve DN25(1") H270
Article-No.: 01321.2533.0014
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01321
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 25
- Nominal pressure:
- PN 50
- Kvs-value:
- 11.5 MQH
- CV-Value:
- 13,4 gal/min
- installation height:
- 270.0 MMT
- Connection dimension inlet:
- 33,7 / 1''
- Connection dimension outlet:
- 33,7 / 1''
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR
Article-No.: 01321.4048.0014
Price
POR
POR
Globe Valve DN40(1 1/2") H270
Article-No.: 01321.4048.0014
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01321
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 40
- Nominal pressure:
- PN 50
- Kvs-value:
- 22.6 MQH
- CV-Value:
- 26,3 gal/min
- installation height:
- 270.0 MMT
- Connection dimension inlet:
- 48,3 / 1.1/2''
- Connection dimension outlet:
- 48,3 / 1.1/2''
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR
Article-No.: 01321.4048.0024
Price
POR
POR
Globe Valve DN40(1 1/2") H370
Article-No.: 01321.4048.0024
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01321
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 40
- Nominal pressure:
- PN 50
- Kvs-value:
- 22.6 MQH
- CV-Value:
- 26,3 gal/min
- installation height:
- 370.0 MMT
- Connection dimension inlet:
- 48,3 / 1.1/2''
- Connection dimension outlet:
- 48,3 / 1.1/2''
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR
Article-No.: 01321.4048.0011
Price
POR
POR
Globe Valve DN40(1 1/2") H270
Article-No.: 01321.4048.0011
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01321
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 40
- Nominal pressure:
- PN 50
- Kvs-value:
- 22.6 MQH
- CV-Value:
- 26,3 gal/min
- installation height:
- 270.0 MMT
- Connection dimension inlet:
- 48,3 X 2,0
- Connection dimension outlet:
- 48,3 X 2,0
- Connection inlet:
- welding end
- Connection outlet:
- welding end
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR
Article-No.: 01321.2533.0011
Price
POR
POR
Globe Valve DN25(1") H270
Article-No.: 01321.2533.0011
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01321
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 25
- Nominal pressure:
- PN 50
- Kvs-value:
- 11.5 MQH
- CV-Value:
- 13,4 gal/min
- installation height:
- 270.0 MMT
- Connection dimension inlet:
- 33,7 x 2,0
- Connection dimension outlet:
- 33,7 X 2,0
- Connection inlet:
- welding end
- Connection outlet:
- welding end
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR
Article-No.: 01321.4048.0026
Price
POR
POR
Globe Valve DN40(1 1/2") H370
Article-No.: 01321.4048.0026
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01321
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 40
- Nominal pressure:
- PN 50
- Kvs-value:
- 22.6 MQH
- CV-Value:
- 26,3 gal/min
- installation height:
- 370.0 MMT
- Connection dimension inlet:
- 48,3 X 2,6 / 1.1/2'' S10
- Connection dimension outlet:
- 48,3 X 2,6 / 1.1/2'' S10
- Connection inlet:
- welding end
- Connection outlet:
- welding end
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR
Article-No.: 01321.1012.0011
Price
POR
POR
Globe Valve DN10(3/8") H270
Article-No.: 01321.1012.0011
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01321
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 10
- Nominal pressure:
- PN 50
- Kvs-value:
- 1.6 MQH
- CV-Value:
- 1,9 gal/min
- installation height:
- 270.0 MMT
- Connection dimension inlet:
- 12,0 x 1,0
- Connection dimension outlet:
- 12,0 X 1,0
- Connection inlet:
- welding end
- Connection outlet:
- welding end
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR

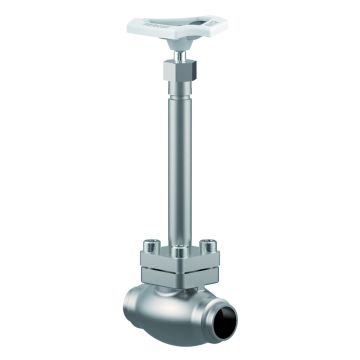

Article-No.: 01341.2533.0014
Price
POR
POR
Globe Valve DN25(1") H270
Article-No.: 01341.2533.0014
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01341_1
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 25
- Nominal pressure:
- PN 50
- Kvs-value:
- 11.5 MQH
- CV-Value:
- 13,4 gal/min
- installation height:
- 270.0 MMT
- Connection dimension inlet:
- 33,7 / 1''
- Connection dimension outlet:
- 33,7 / 1''
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR
Article-No.: 01341.4048.0014
Price
POR
POR
Globe Valve DN40(1 1/2") H270
Article-No.: 01341.4048.0014
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_01341_1
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 40
- Nominal pressure:
- PN 50
- Kvs-value:
- 22.6 MQH
- CV-Value:
- 26,3 gal/min
- installation height:
- 270.0 MMT
- Connection dimension inlet:
- 48,3 / 1.1/2''
- Connection dimension outlet:
- 48,3 / 1.1/2''
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
- Disc seal:
- PTFE/Kohle
- Handwheelmaterial and color:
- Aluminium, weiß
- Taper function:
- absperrbare Funktion
Price
POR
POR
View as
Grid
List
The type corresponds
to the product series.
You can find this
5-digit number on your
product and on documents.
The product corresponds
to the marketable valve.
The product number is unique.
