Article-No.: 06217.0400.0000
Price
POR
POR
Safety Valve DN15(1/2") d0 12
Article-No.: 06217.0400.0000
- Solution:
- Air Gases, Industry
- Solution Area:
- Storage, Processes, Compressed Air
- HEROSE Type Reference:
- IN_06216_06217
- Maximum allowable temperature:
- -40.0 °C
- Maximum allowable temperature:
- 200.0 °C
- Connection dimension inlet:
- 1/2''
- Connection inlet:
- male thread BSPP
- Pressure range BAR:
- 0,20 - 25,00 bar
- Pressure range KPA:
- 20,00 - 2.500,00 kPa
- Pressure range PSI:
- 2,90 - 362,50 PSI
- Disc seal:
- F
Price
POR
POR
Article-No.: 06217.0600.0000
Price
POR
POR
Safety Valve DN20(3/4") d0 15
Article-No.: 06217.0600.0000
- Solution:
- Air Gases, Industry
- Solution Area:
- Storage, Processes, Compressed Air
- HEROSE Type Reference:
- IN_06216_06217
- Maximum allowable temperature:
- -40.0 °C
- Maximum allowable temperature:
- 200.0 °C
- Connection dimension inlet:
- 3/4''
- Connection inlet:
- male thread BSPP
- Pressure range BAR:
- 0,20 - 20,00 bar
- Pressure range KPA:
- 20,00 - 2.000,00 kPa
- Pressure range PSI:
- 2,90 - 290,00 PSI
- Disc seal:
- F
Price
POR
POR
Article-No.: 06217.1000.0000
Price
POR
POR

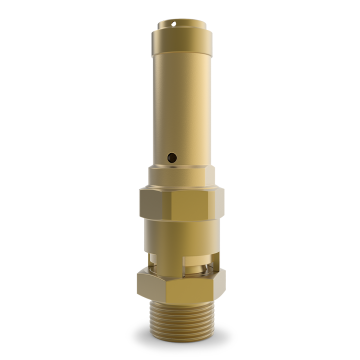

Safety Valve DN25(1") d0 20
Article-No.: 06217.1000.0000
- Solution:
- Air Gases, Industry
- Solution Area:
- Storage, Processes, Compressed Air
- HEROSE Type Reference:
- IN_06216_06217
- Maximum allowable temperature:
- -40.0 °C
- Maximum allowable temperature:
- 200.0 °C
- Connection dimension inlet:
- 1"
- Connection inlet:
- male thread BSPP
- Pressure range BAR:
- 0,20 - 30,00 bar
- Pressure range KPA:
- 20,00 - 3.000,00 kPa
- Pressure range PSI:
- 2,90 - 435,00 PSI
- Disc seal:
- F
Price
POR
POR
Article-No.: 06217.1200.0000
Price
POR
POR
Safety Valve DN32(1 1/4") d0 25
Article-No.: 06217.1200.0000
- Solution:
- Air Gases, Industry
- Solution Area:
- Storage, Processes, Compressed Air
- HEROSE Type Reference:
- IN_06216_06217
- Maximum allowable temperature:
- -40.0 °C
- Maximum allowable temperature:
- 200.0 °C
- Connection dimension inlet:
- 1.1/4''
- Connection inlet:
- male thread BSPP
- Pressure range BAR:
- 0,20 - 22,00 bar
- Pressure range KPA:
- 20,00 - 2.200,00 kPa
- Pressure range PSI:
- 2,90 - 319,00 PSI
- Disc seal:
- F
Price
POR
POR
Article-No.: 06217.1400.0000
Price
POR
POR
Safety Valve DN40(1 1/2") d0 32
Article-No.: 06217.1400.0000
- Solution:
- Air Gases, Industry
- Solution Area:
- Storage, Processes, Compressed Air
- HEROSE Type Reference:
- IN_06216_06217
- Maximum allowable temperature:
- -40.0 °C
- Maximum allowable temperature:
- 200.0 °C
- Connection dimension inlet:
- 1.1/2''
- Connection inlet:
- male thread BSPP
- Pressure range BAR:
- 0,20 - 16,00 bar
- Pressure range KPA:
- 20,00 - 1.600,00 kPa
- Pressure range PSI:
- 2,90 - 232,00 PSI
- Disc seal:
- F
Price
POR
POR
Article-No.: 06217.2000.0000
Price
POR
POR
Safety Valve DN50(2") d0 40
Article-No.: 06217.2000.0000
- Solution:
- Air Gases, Industry
- Solution Area:
- Storage, Processes, Compressed Air
- HEROSE Type Reference:
- IN_06216_06217
- Maximum allowable temperature:
- -40.0 °C
- Maximum allowable temperature:
- 200.0 °C
- Connection dimension inlet:
- 2"
- Connection inlet:
- male thread BSPP
- Pressure range BAR:
- 0,20 - 12,00 bar
- Pressure range KPA:
- 20,00 - 1.200,00 kPa
- Pressure range PSI:
- 2,90 - 174,00 PSI
- Disc seal:
- F
Price
POR
POR
Article-No.: 06217.1400.0001
Price
POR
POR
Safety Valve DN40(1 1/2") d0 32
Article-No.: 06217.1400.0001
- Solution:
- Air Gases
- Solution Area:
- Storage, Processes
- HEROSE Type Reference:
- IN_06216_06217_wpc
- Maximum allowable temperature:
- -30.0 °C
- Maximum allowable temperature:
- 200.0 °C
- Connection dimension inlet:
- 1.1/2''
- Connection inlet:
- male thread BSPP
- Pressure range BAR:
- 0,20 - 16,00 bar
- Pressure range KPA:
- 20,00 - 1.600,00 kPa
- Pressure range PSI:
- 2,90 - 232,00 PSI
- Disc seal:
- F
Price
POR
POR
Article-No.: 06219.0600.0000
Price
POR
POR
Safety Valve DN20(3/4") d0 12.5
Article-No.: 06219.0600.0000
- Solution:
- Air Gases
- Solution Area:
- Storage, Processes
- HEROSE Type Reference:
- IN_06218_06219
- Maximum allowable temperature:
- -60.0 °C
- Maximum allowable temperature:
- 150.0 °C
- Connection dimension inlet:
- 3/4''
- Connection inlet:
- male thread BSPP
- Pressure range BAR:
- 3,50 - 17,00 bar
- Pressure range KPA:
- 350,00 - 1.700,00 kPa
- Pressure range PSI:
- 50,75 - 246,50 PSI
- Disc seal:
- P
Price
POR
POR
Article-No.: 06217.2000.0001
Price
POR
POR

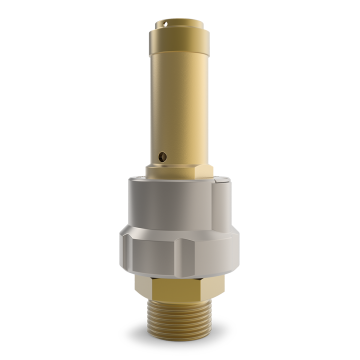

Safety Valve DN50(2") d0 40
Article-No.: 06217.2000.0001
- Solution:
- Air Gases
- Solution Area:
- Storage, Processes
- HEROSE Type Reference:
- IN_06216_06217_wpc
- Maximum allowable temperature:
- -30.0 °C
- Maximum allowable temperature:
- 130.0 °C
- Connection dimension inlet:
- 2"
- Connection inlet:
- male thread BSPP
- Pressure range BAR:
- 0,20 - 12,00 bar
- Pressure range KPA:
- 20,00 - 1.200,00 kPa
- Pressure range PSI:
- 2,90 - 174,00 PSI
- Disc seal:
- F
Price
POR
POR
Article-No.: 06217.1200.0001
Price
POR
POR
Safety Valve DN32(1 1/4") d0 25
Article-No.: 06217.1200.0001
- Solution:
- Air Gases
- Solution Area:
- Storage, Processes
- HEROSE Type Reference:
- IN_06216_06217_wpc
- Maximum allowable temperature:
- -30.0 °C
- Maximum allowable temperature:
- 130.0 °C
- Connection dimension inlet:
- 1.1/4''
- Connection inlet:
- male thread BSPP
- Pressure range BAR:
- 0,20 - 22,00 bar
- Pressure range KPA:
- 20,00 - 2.200,00 kPa
- Pressure range PSI:
- 2,90 - 319,00 PSI
- Disc seal:
- F
Price
POR
POR
Article-No.: 06217.1200.5000
Price
POR
POR
Safety Valve DN32(1 1/4") d0 25
Article-No.: 06217.1200.5000
- Solution:
- Air Gases, Industry
- Solution Area:
- Storage, Processes, Compressed Air
- HEROSE Type Reference:
- IN_06217
- Maximum allowable temperature:
- -40.0 °C
- Maximum allowable temperature:
- 200.0 °C
- Connection dimension inlet:
- 1.1/4''
- Connection inlet:
- male thread NPT
- Pressure range BAR:
- 0,20 - 22,00 bar
- Pressure range KPA:
- 20,00 - 2.200,00 kPa
- Pressure range PSI:
- 2,90 - 319,00 PSI
- Disc seal:
- F
Price
POR
POR
Article-No.: 06C02.A001.000051
Price
POR
POR

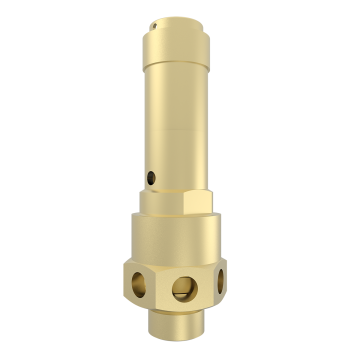

Safety Valve DN15(1/2") d0 8
Article-No.: 06C02.A001.000051
- Solution:
- Air Gases, Industry
- Solution Area:
- Storage, Processes, Compressed Air, Steam, FKS
- HEROSE Type Reference:
- IN_06C02
- Maximum allowable temperature:
- -20.0 °C
- Maximum allowable temperature:
- 160.0 °C
- Connection dimension inlet:
- 1/2''
- Connection inlet:
- male thread BSPP
- Pressure range BAR:
- 39,00 - 50,00 bar
- Pressure range KPA:
- 3.900,00 - 5.000,00 kPa
- Pressure range PSI:
- 565,65 - 725,19 PSI
- Disc seal:
- FPM
Price
POR
POR
