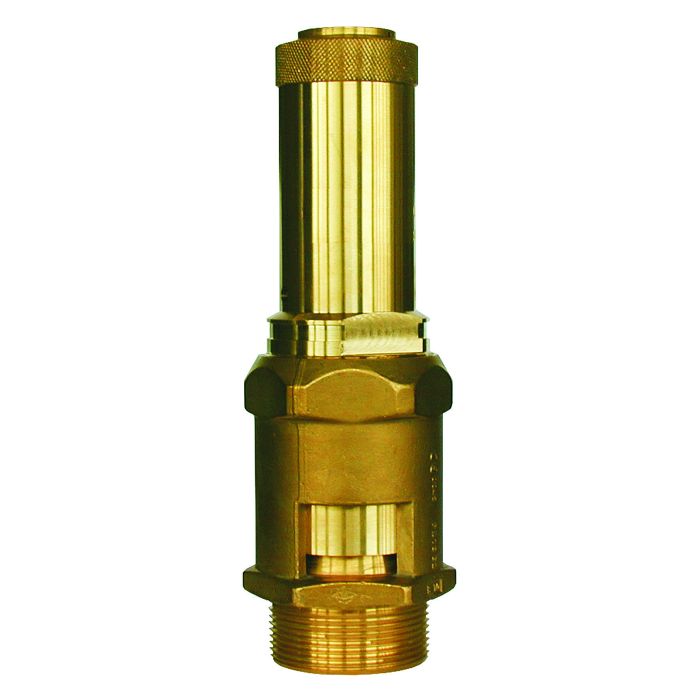

Safety Valve DN50(2") d0 40

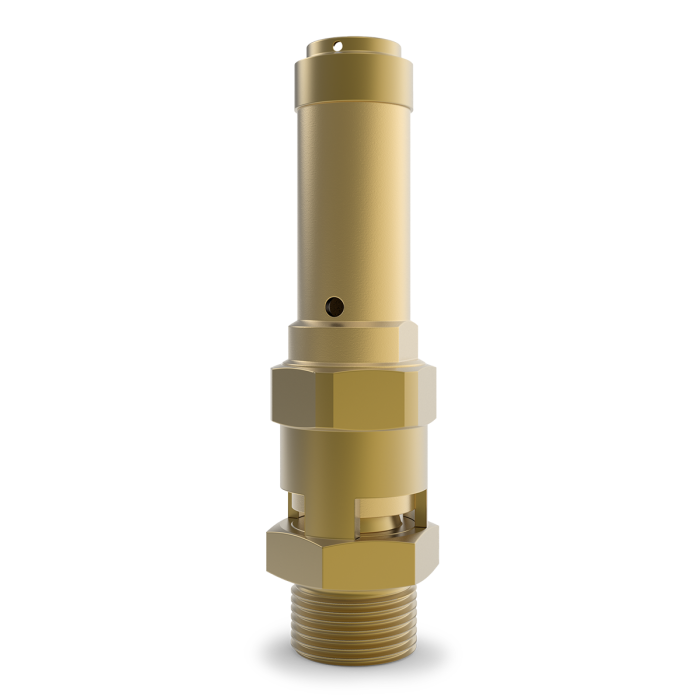

The product shown in the picture may differ from the product sold.
Safety Valve DN50(2") d0 40
Article-No.: 06217.2000.0000
Price
POR
Description
Safety Valve, type tested
for air and similar gases
working temperature -40°C up to +200°C
bonnet CW614N brass open with lifting device
inlet CW617N brass 2"BSPP male thread
outlet CW617N brass with discharge holes
disc FPM (Viton)
orifice 40.0mm
spring 1.1200 st. zinc plated
threaded end 25.0mm
for air and similar gases
working temperature -40°C up to +200°C
bonnet CW614N brass open with lifting device
inlet CW617N brass 2"BSPP male thread
outlet CW617N brass with discharge holes
disc FPM (Viton)
orifice 40.0mm
spring 1.1200 st. zinc plated
threaded end 25.0mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06217.2000.0000 |
|---|---|
| Solution | Air Gases, Industry |
| Solution Area | Storage, Processes, Compressed Air |
| HEROSE Type Reference | IN_06216_06217 |
| Type (Series) | 06217 |
| Maximum allowable temperature | -40.0 °C |
| Maximum allowable temperature | 200.0 °C |
| Opening pressure difference | 10% |
| body material | CW617N |
| China approval | TSF700D36-2029 |
| Connection dimension inlet | 2" |
| Connection inlet | male thread BSPP |
| Canada approval | CRN 0G7343.5C |
| Pressure range BAR | 0,20 - 12,00 bar |
| Pressure range KPA | 20,00 - 1.200,00 kPa |
| Pressure range PSI | 2,90 - 174,00 PSI |
| Disc seal | F |
Related Type
Datasheet ID: IN_06216_06217
Type 06216, Type 06217
Datasheet ID: IN_06216_06217
