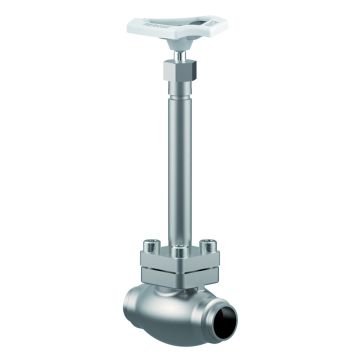

Globe Valve DN40(1 1/2") H370
Connection outlet:
copper pipe
Connection inlet:
with brazed copper stubs
Connection dimension outlet:
42,0 X 1,5
Connection dimension inlet:
42,0 x 1,5
CV-Value:
23.9 gal/min
Kvs-value:
20.6 MQH
Nominal pressure:
PN 35
nominal size:
DN 40
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
installation height:
370.0 MMT
Article-No.: 01311.4042.0028
Price
Open product details
main_de
Globe Valve DN25(1") H760
Connection outlet:
welding end
Connection inlet:
welding end
Connection dimension outlet:
33,7 X 3,2 / 1'' S40
Connection dimension inlet:
33,7 x 3,2 / 1'' S40
CV-Value:
13,4 gal/min
Kvs-value:
11.5 MQH
Nominal pressure:
PN 50
nominal size:
DN 25
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-255.0 °C
installation height:
760.0 MMT
Article-No.: 01470.2533.A695S
Price
Open product details
main_de
Globe Valve DN100(4") H960
Connection outlet:
welding end
Connection inlet:
welding end
Connection dimension outlet:
114,3 X 2,9 / 4'' S10
Connection dimension inlet:
114,3 x 2,9 / 4'' S10
CV-Value:
195,2 gal/min
Kvs-value:
170.0 MQH
Nominal pressure:
PN 25
nominal size:
DN 100
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-255.0 °C
installation height:
960.0 MMT
Article-No.: 01470.0114.0681
Price
Open product details
main_de
Globe Valve DN100(4") H750
Connection outlet:
flange ASME B16.5
Connection inlet:
flange ASME B16.5
Connection dimension outlet:
4'' CL300
Connection dimension inlet:
4'' CL300
CV-Value:
195,2 gal/min
Kvs-value:
170.0 MQH
Nominal pressure:
CL300
nominal size:
DN 100
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
installation height:
750.0 MMT
Article-No.: 03341.4000.0793
Price
Open product details
main_de
Globe Valve DN100(4") H370
Connection outlet:
flange ASME B16.5
Connection inlet:
flange ASME B16.5
Connection dimension outlet:
4'' CL300
Connection dimension inlet:
4'' CL300
CV-Value:
195,2 gal/min
Kvs-value:
170.0 MQH
Nominal pressure:
CL300
nominal size:
DN 100
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
installation height:
370.0 MMT
Article-No.: 03341.4000.0023
Price
Open product details
main_de
Globe Valve DN80(3") H320
Connection outlet:
flange ASME B16.5
Connection inlet:
flange ASME B16.5
Connection dimension outlet:
3'' CL300
Connection dimension inlet:
3'' CL300
CV-Value:
120,9 gal/min
Kvs-value:
104.0 MQH
Nominal pressure:
CL300
nominal size:
DN 80
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
installation height:
320.0 MMT
Article-No.: 03341.3000.0013
Price
Open product details
main_de
Globe Valve DN50(2") H370
Connection outlet:
flange ASME B16.5
Connection inlet:
flange ASME B16.5
Connection dimension outlet:
2'' CL150
Connection dimension inlet:
2'' CL150
CV-Value:
43,2 gal/min
Kvs-value:
37.1 MQH
Nominal pressure:
CL150
nominal size:
DN 50
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
installation height:
370.0 MMT
Article-No.: 03341.2000.9000
Price
Open product details
main_de
Globe Valve DN100(4") H370
Connection outlet:
flange acc. DIN EN ISO 1092-1
Connection inlet:
flange DIN EN ISO 1092-1
Connection dimension outlet:
DN100 PN16
Connection dimension inlet:
DN100 PN16
CV-Value:
198,3 gal/min
Kvs-value:
170.0 MQH
Nominal pressure:
PN 16
nominal size:
DN 100
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
installation height:
370.0 MMT
Article-No.: 03341.1000.2424
Price
Open product details
main_de
Globe Valve DN80(3") H620
Connection outlet:
flange acc. DIN EN ISO 1092-1
Connection inlet:
flange DIN EN ISO 1092-1
Connection dimension outlet:
DN80 PN40
Connection dimension inlet:
DN80 PN40
CV-Value:
121,3 gal/min
Kvs-value:
104.0 MQH
Nominal pressure:
PN 40
nominal size:
DN 80
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
installation height:
620.0 MMT
Article-No.: 03341.0800.2A82
Price
Open product details
main_de
Globe Valve DN65(2 1/2") H370
Connection outlet:
flange acc. DIN EN ISO 1092-1
Connection inlet:
flange DIN EN ISO 1092-1
Connection dimension outlet:
DN65 PN40
Connection dimension inlet:
DN65 PN40
CV-Value:
82,7 gal/min
Kvs-value:
71.1 MQH
Nominal pressure:
PN 40
nominal size:
DN 65
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
installation height:
370.0 MMT
Article-No.: 03341.0650.0022
Price
Open product details
main_de
Globe Valve DN40(1 1/2") H270
Connection outlet:
flange acc. DIN EN ISO 1092-1
Connection inlet:
flange DIN EN ISO 1092-1
Connection dimension outlet:
DN40 PN40
Connection dimension inlet:
DN40 PN40
CV-Value:
26,3 gal/min
Kvs-value:
22.6 MQH
Nominal pressure:
PN 40
nominal size:
DN 40
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
installation height:
270.0 MMT
Article-No.: 03341.0400.0012PTF
Price
Open product details
main_de
Globe Valve DN15(1/2") H270
Connection outlet:
flange acc. DIN EN ISO 1092-1
Connection inlet:
flange DIN EN ISO 1092-1
Connection dimension outlet:
DN15 PN40
Connection dimension inlet:
DN15 PN40
CV-Value:
5,0 gal/min
Kvs-value:
4.3 MQH
Nominal pressure:
PN 40
nominal size:
DN 15
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
installation height:
270.0 MMT
Article-No.: 03341.0150.0012
Price
Open product details
1727 Products
of 144
Sort By

Globe Valve

Globe valves are used to regulate the flow of liquids or gases in pipelines. HEROSE Cryo globe valves are available in a wide range of connection and material combinations. The cryogenic shut-off valves are available in sizes DN10 to DN200 and secure pressures up to 50 bar, at operating temperatures from -255°C up to +120°C.
