                        Article-No.: 06195.0400.0000


Price


                POR


            POR


                Overflow Valve DN15(1/2") d0 12

                Article-No.: 06195.0400.0000
            - Solution:
- Air Gases
- Solution Area:
- Storage, Processes
- HEROSE Type Reference:
- IN_06195
- Maximum allowable temperature:
- -10.0 °C
- Maximum allowable temperature:
- 110.0 °C
- Connection dimension inlet:
- 1/2''
- Connection dimension outlet:
- 1/2''
- Connection inlet:
- female thread BSPP
- Connection outlet:
- female thread BSPP
- Pressure range BAR:
- 0,50 - 25,00 bar
- Pressure range KPA:
- 50,00 - 2.500,00 kPa
- Pressure range PSI:
- 7,25 - 362,50 PSI
- Disc seal:
- N
Price


                POR


            POR


                        Article-No.: 06195.0600.0000


Price


                POR


            POR


                Overflow Valve DN20(3/4") d0 15

                Article-No.: 06195.0600.0000
            - Solution:
- Air Gases
- Solution Area:
- Storage, Processes
- HEROSE Type Reference:
- IN_06195
- Maximum allowable temperature:
- -10.0 °C
- Maximum allowable temperature:
- 110.0 °C
- Connection dimension inlet:
- 3/4''
- Connection dimension outlet:
- 3/4''
- Connection inlet:
- female thread BSPP
- Connection outlet:
- female thread BSPP
- Pressure range BAR:
- 0,20 - 20,00 bar
- Pressure range KPA:
- 20,00 - 2.000,00 kPa
- Pressure range PSI:
- 2,90 - 290,00 PSI
- Disc seal:
- N
Price


                POR


            POR


                        Article-No.: 06196.0400.0000


Price


                POR


            POR


                Overflow Valve DN15(1/2") d0 12

                Article-No.: 06196.0400.0000
            - Solution:
- Air Gases
- Solution Area:
- Storage, Processes
- HEROSE Type Reference:
- IN_06196
- Maximum allowable temperature:
- -10.0 °C
- Maximum allowable temperature:
- 185.0 °C
- Connection dimension inlet:
- 1/2''
- Connection dimension outlet:
- 1/2''
- Connection inlet:
- female thread BSPP
- Connection outlet:
- female thread BSPP
- Pressure range BAR:
- 0,20 - 25,00 bar
- Pressure range KPA:
- 20,00 - 2.500,00 kPa
- Pressure range PSI:
- 2,90 - 362,50 PSI
- Disc seal:
- P
Price


                POR


            POR


                        Article-No.: 50051.0004.0000


Price


                POR


            POR

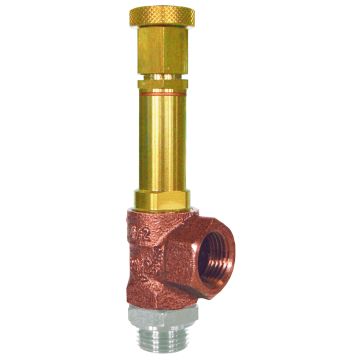

                Safety Valve DN15(1/2") d0 7

                Article-No.: 50051.0004.0000
            - Solution:
- Air Gases
- Solution Area:
- Storage, Processes
- HEROSE Type Reference:
- IN_50051_0004
- Maximum allowable temperature:
- -10.0 °C
- Maximum allowable temperature:
- 160.0 °C
- Connection dimension inlet:
- 1/2''
- Connection dimension outlet:
- 1/2''
- Connection inlet:
- male thread BSPP
- Connection outlet:
- female thread BSPP
- Pressure range BAR:
- 6,00 - 15,00 bar
- Pressure range KPA:
- 600,00 - 1.500,00 kPa
- Pressure range PSI:
- 87,00 - 217,50 PSI
Price


                POR


            POR


                        Article-No.: 06001.0400.9002


Price


                POR


            POR

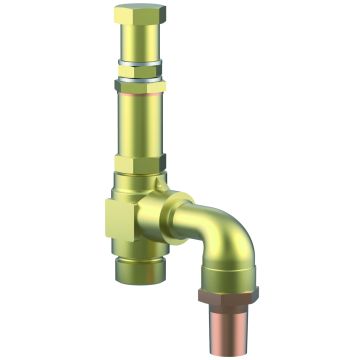

                Overflow Valve DN15(1/2") d0 6

                Article-No.: 06001.0400.9002
            - Solution:
- LNG
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_06001_2
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 65.0 °C
- Connection dimension inlet:
- 1/2''
- Connection dimension outlet:
- 3/8''
- Connection inlet:
- male thread BSPP
- Connection outlet:
- G-f-thread (BSPP) - elbow
- Pressure range BAR:
- 16,00 - 21,00 bar
- Pressure range KPA:
- 1.600,00 - 2.100,00 kPa
- Pressure range PSI:
- 232,00 - 304,50 PSI
- Disc seal:
- K
Price


                POR


            POR


                        Article-No.: 06195.0400.0700


Price


                POR


            POR


                Overflow Valve DN15(1/2") d0 12

                Article-No.: 06195.0400.0700
            - Solution:
- Air Gases
- Solution Area:
- Storage, Processes
- HEROSE Type Reference:
- IN_06195
- Maximum allowable temperature:
- -10.0 °C
- Maximum allowable temperature:
- 165.0 °C
- Connection dimension inlet:
- 1/2''
- Connection dimension outlet:
- 1/2''
- Connection inlet:
- female thread BSPP
- Connection outlet:
- female thread BSPP
- Pressure range BAR:
- 0,50 - 25,00 bar
- Pressure range KPA:
- 50,00 - 2.500,00 kPa
- Pressure range PSI:
- 7,25 - 362,50 PSI
- Disc seal:
- F
Price


                POR


            POR


                        Article-No.: 06003.0200.6000


Price


                POR


            POR


                Overflow Valve DN8(1/4") d0 6

                Article-No.: 06003.0200.6000
            - Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- 06003
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 150.0 °C
- Connection dimension inlet:
- 1/4''
- Connection dimension outlet:
- 3/8''
- Connection inlet:
- male thread NPT
- Connection outlet:
- female thread NPT
- Pressure range BAR:
- 1,00 - 55,00 bar
- Pressure range KPA:
- 100,00 - 5.500,00 kPa
- Pressure range PSI:
- 14,50 - 797,50 PSI
- Disc seal:
- K
Price


                POR


            POR


                        Article-No.: 06386.1004.9001


Price


                POR


            POR

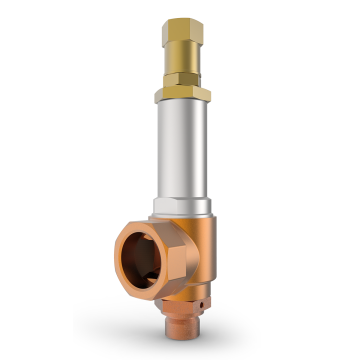

                Overflow Valve DN15(1/2") d0 10,5

                Article-No.: 06386.1004.9001
            - Solution:
- H2, LNG
- Solution Area:
- Manufacturing, Transport, Storage, Application, Refueling, Processes
- HEROSE Type Reference:
- CR_06386_2
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 185.0 °C
- Connection dimension inlet:
- 1/2''
- Connection dimension outlet:
- 1''
- Connection inlet:
- male thread BSPP
- Connection outlet:
- female thread BSPP
- Pressure range BAR:
- 3,00 - 8,00 bar
- Pressure range KPA:
- 300,00 - 800,00 kPa
- Pressure range PSI:
- 43,50 - 116,00 PSI
- Disc seal:
- M
Price


                POR


            POR


                        Article-No.: 06001.0400.9004


Price


                POR


            POR


                Overflow Valve DN15(1/2") d0 6

                Article-No.: 06001.0400.9004
            - Solution:
- LNG
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_06001_2
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 65.0 °C
- Connection dimension inlet:
- 1/2''
- Connection dimension outlet:
- 3/8''
- Connection inlet:
- male thread BSPP
- Connection outlet:
- G-f-thread (BSPP) - elbow
- Pressure range BAR:
- 28,00 - 36,00 bar
- Pressure range KPA:
- 2.800,00 - 3.600,00 kPa
- Pressure range PSI:
- 406,00 - 522,00 PSI
- Disc seal:
- K
Price


                POR


            POR


                        Article-No.: 06001.0400.9001


Price


                POR


            POR


                Overflow Valve DN15(1/2") d0 6

                Article-No.: 06001.0400.9001
            - Solution:
- LNG
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_06001_2
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 65.0 °C
- Connection dimension inlet:
- 1/2''
- Connection dimension outlet:
- 3/8''
- Connection inlet:
- male thread BSPP
- Connection outlet:
- G-f-thread (BSPP) - elbow
- Pressure range BAR:
- 11,01 - 16,00 bar
- Pressure range KPA:
- 1.101,00 - 1.600,00 kPa
- Pressure range PSI:
- 159,51 - 232,00 PSI
- Disc seal:
- K
Price


                POR


            POR


                        Article-No.: 06386.1004.9002


Price


                POR


            POR


                Overflow Valve DN15(1/2") d0 10,5

                Article-No.: 06386.1004.9002
            - Solution:
- H2, LNG
- Solution Area:
- Manufacturing, Transport, Storage, Application, Refueling, Processes
- HEROSE Type Reference:
- CR_06386_2
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 185.0 °C
- Connection dimension inlet:
- 1/2''
- Connection dimension outlet:
- 1''
- Connection inlet:
- male thread BSPP
- Connection outlet:
- female thread BSPP
- Pressure range BAR:
- 7,00 - 17,00 bar
- Pressure range KPA:
- 700,00 - 1.700,00 kPa
- Pressure range PSI:
- 101,50 - 246,50 PSI
- Disc seal:
- M
Price


                POR


            POR


                        Article-No.: 06196.0600.0000


Price


                POR


            POR


                Overflow Valve DN20(3/4") d0 15

                Article-No.: 06196.0600.0000
            - Solution:
- Air Gases
- Solution Area:
- Storage, Processes
- HEROSE Type Reference:
- IN_06196
- Maximum allowable temperature:
- -10.0 °C
- Maximum allowable temperature:
- 185.0 °C
- Connection dimension inlet:
- 3/4''
- Connection dimension outlet:
- 3/4''
- Connection inlet:
- female thread BSPP
- Connection outlet:
- female thread BSPP
- Pressure range BAR:
- 0,20 - 20,00 bar
- Pressure range KPA:
- 20,00 - 2.000,00 kPa
- Pressure range PSI:
- 2,90 - 290,00 PSI
- Disc seal:
- P
Price


                POR


            POR
