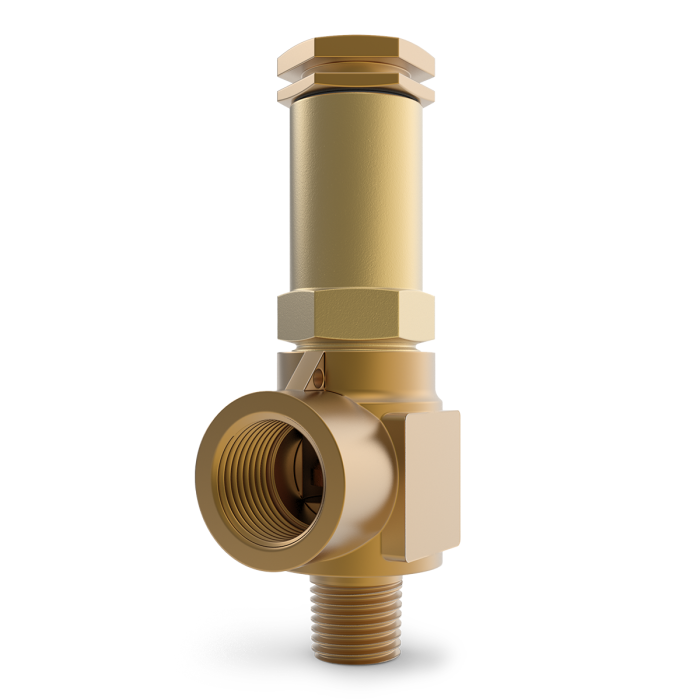

Overflow Valve DN8(1/4") d0 6
The product shown in the picture may differ from the product sold.
Overflow Valve DN8(1/4") d0 6
Article-No.: 06003.0200.6000
Price
POR
Description
overflow valve without type tested
suitable for gases and vapours
cleaned and degreased for oxygen service
working temperature -196°C bis +50°C
bonnet CW614N brass closed bonnet
inlet CW617N brass 1/4"NPT male thread
outlet CW617N brass 3/8"NPT female thread
obturator PTFE/Electrocarbon 25%
orifice 6.0mm
spring 1.4571 st.st.
Not to use as equipment with safety function acc.
to Pressure Equipment Directive 2014/68/EU (PED)
suitable for gases and vapours
cleaned and degreased for oxygen service
working temperature -196°C bis +50°C
bonnet CW614N brass closed bonnet
inlet CW617N brass 1/4"NPT male thread
outlet CW617N brass 3/8"NPT female thread
obturator PTFE/Electrocarbon 25%
orifice 6.0mm
spring 1.4571 st.st.
Not to use as equipment with safety function acc.
to Pressure Equipment Directive 2014/68/EU (PED)
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06003.0200.6000 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | 06003 |
| Type (Series) | 06003 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 150.0 °C |
| body material | CW617N |
| Connection dimension inlet | 1/4'' |
| Connection dimension outlet | 3/8'' |
| Connection inlet | male thread NPT |
| Connection outlet | female thread NPT |
| Pressure range BAR | 1,00 - 55,00 bar |
| Pressure range KPA | 100,00 - 5.500,00 kPa |
| Pressure range PSI | 14,50 - 797,50 PSI |
| Disc seal | K |
