Article-No.: 06510.2004.6120
Price
POR
POR

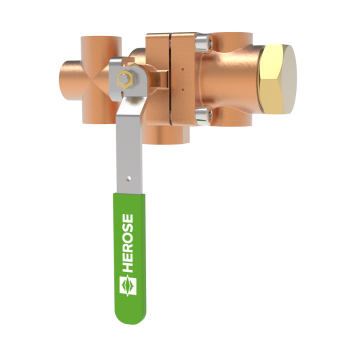

Changeover Ball Valve DN20(3/4")
Article-No.: 06510.2004.6120
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_1
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 20
- Nominal pressure:
- PN 50
- Kvs-value:
- 7.7 MQH
- CV-Value:
- 9,2 gal/min
- Connection dimension inlet:
- 1"
- Connection dimension outlet:
- 1/2''
- Connection inlet:
- female thread NPT
- Connection outlet:
- female thread NPT
Price
POR
POR
Article-No.: 06510.2040.6026
Price
POR
POR

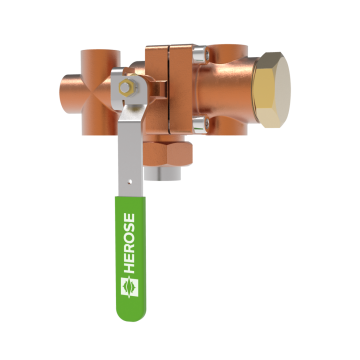

Changeover Ball Valve DN20(3/4")
Article-No.: 06510.2040.6026
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_2
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 20
- Nominal pressure:
- PN 50
- Kvs-value:
- 7.7 MQH
- CV-Value:
- 9,2 gal/min
- Connection dimension inlet:
- 33,7 x 2,6 / 1'' S10
- Connection dimension outlet:
- 1/2''
- Connection inlet:
- SCHWEIßKUGELBUCHSE
- Connection outlet:
- female thread NPT
Price
POR
POR
Article-No.: 06510.2060.9999
Price
POR
POR
Changeover Ball Valve DN20(3/4")
Article-No.: 06510.2060.9999
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_2
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 20
- Nominal pressure:
- PN 50
- Kvs-value:
- 7.7 MQH
- CV-Value:
- 9,2 gal/min
- Connection dimension inlet:
- 33,7 x 1,6 / 1'' S5
- Connection dimension outlet:
- 3/4''
- Connection inlet:
- stainless steel
- Connection outlet:
- female thread NPT
Price
POR
POR
Article-No.: 06510.3260.6037
Price
POR
POR

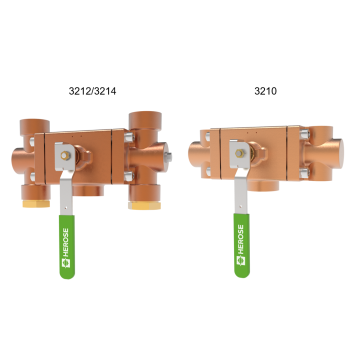

Changeover Ball Valve DN32(1 1/4")
Article-No.: 06510.3260.6037
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_3
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 32
- Nominal pressure:
- PN 50
- Kvs-value:
- 16.7 MQH
- CV-Value:
- 19,4 gal/min
- Connection dimension inlet:
- 48,3 X 1,6 / 1.1/2'' S5
- Connection dimension outlet:
- 3/4''
- Connection inlet:
- SCHWEIßKUGELBUCHSE
- Connection outlet:
- female thread NPT
Price
POR
POR
Article-No.: 06510.3210.6227
Price
POR
POR
Changeover Ball Valve DN32(1 1/4")
Article-No.: 06510.3210.6227
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_3
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 32
- Nominal pressure:
- PN 50
- Kvs-value:
- 16.7 MQH
- CV-Value:
- 19,4 gal/min
- Connection dimension inlet:
- 48,3 X 3,6 / 1.1/2'' S40
- Connection dimension outlet:
- 1''
- Connection inlet:
- SCHWEIßKUGELBUCHSE
- Connection outlet:
- female thread NPT
Price
POR
POR
Article-No.: 06510.3260.6037BR
Price
POR
POR
Wechselkugelhahn DN32 (1 1/4")
Article-No.: 06510.3260.6037BR
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_3
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 32
- Nominal pressure:
- PN 50
- Kvs-value:
- 16.7 MQH
- CV-Value:
- 19,4 gal/min
- Connection dimension inlet:
- 48,3 X 1,6 / 1.1/2'' S5
- Connection dimension outlet:
- 3/4''
- Connection inlet:
- SCHWEIßKUGELBUCHSE
- Connection outlet:
- female thread NPT
Price
POR
POR
Article-No.: 06510.2006.0000
Price
POR
POR
Changeover Ball Valve DN20(3/4")
Article-No.: 06510.2006.0000
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_1
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 20
- Nominal pressure:
- PN 50
- Kvs-value:
- 7.7 MQH
- CV-Value:
- 9,2 gal/min
- Connection dimension inlet:
- 1"
- Connection dimension outlet:
- 3/4''
- Connection inlet:
- female thread BSPP
- Connection outlet:
- female thread BSPP
Price
POR
POR
Article-No.: 06510.2047.C020
Price
POR
POR
Changeover Ball Valve DN20(3/4")
Article-No.: 06510.2047.C020
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_2
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 20
- Nominal pressure:
- PN 50
- Kvs-value:
- 7.7 MQH
- CV-Value:
- 9,2 gal/min
- Connection dimension inlet:
- 30,2 X 1,45
- Connection dimension outlet:
- 1/2''
- Connection inlet:
- stainless steel
- Connection outlet:
- female thread BSPP
Price
POR
POR
Article-No.: 06510.3210.6000
Price
POR
POR
Changeover Ball Valve DN32(1 1/4")
Article-No.: 06510.3210.6000
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_3
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 32
- Nominal pressure:
- PN 50
- Kvs-value:
- 16.7 MQH
- CV-Value:
- 19,4 gal/min
- Connection dimension inlet:
- 1.1/2''
- Connection dimension outlet:
- 1''
- Connection inlet:
- female thread NPT
- Connection outlet:
- female thread NPT
Price
POR
POR
Article-No.: 06510.2040.6021
Price
POR
POR
Changeover Ball Valve DN20(3/4")
Article-No.: 06510.2040.6021
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_2
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 20
- Nominal pressure:
- PN 50
- Kvs-value:
- 7.7 MQH
- CV-Value:
- 9,2 gal/min
- Connection dimension inlet:
- M40 X 2,0
- Connection dimension outlet:
- 1/2''
- Connection inlet:
- male thread for metric
- Connection outlet:
- female thread NPT
Price
POR
POR
Article-No.: 06510.2040.6426
Price
POR
POR
Changeover Ball Valve DN20(3/4")
Article-No.: 06510.2040.6426
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_2
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 20
- Nominal pressure:
- PN 50
- Kvs-value:
- 7.7 MQH
- CV-Value:
- 9,2 gal/min
- Connection dimension inlet:
- 33,7 x 2,6 / 1'' S10
- Connection dimension outlet:
- 1/2''
- Connection inlet:
- SCHWEIßKUGELBUCHSE
- Connection outlet:
- female thread NPT
Price
POR
POR
Article-No.: 06510.2060.0041
Price
POR
POR
Changeover Ball Valve DN20(3/4")
Article-No.: 06510.2060.0041
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_06510_2
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 20
- Nominal pressure:
- PN 50
- Kvs-value:
- 7.7 MQH
- CV-Value:
- 9,2 gal/min
- Connection dimension inlet:
- M40 X 2,0
- Connection dimension outlet:
- 3/4''
- Connection inlet:
- male thread for metric
- Connection outlet:
- female thread BSPP
Price
POR
POR
