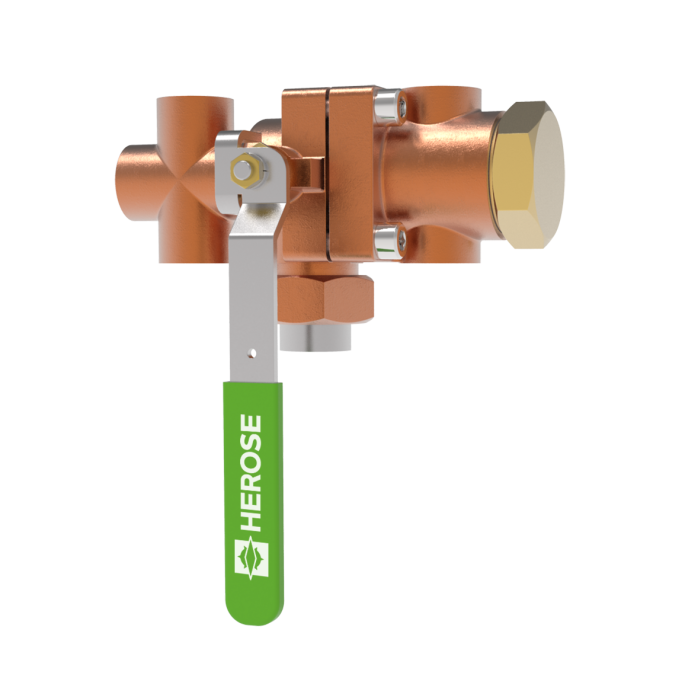

Changeover Ball Valve DN20(3/4")
The product shown in the picture may differ from the product sold.
Changeover Ball Valve DN20(3/4")
Article-No.: 06510.2040.6021
Price
POR
Description
Cryogenic Changeover Ball Valve DN20 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet M40 x 2mm male thread
outlet 1/2"NPT female thread
bursting disc/test connection 3/4"NPT female thread
connection 2x 1/4"NPT female thread
with screw plug
mounting hole 2x M10
face to face 201mm
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet M40 x 2mm male thread
outlet 1/2"NPT female thread
bursting disc/test connection 3/4"NPT female thread
connection 2x 1/4"NPT female thread
with screw plug
mounting hole 2x M10
face to face 201mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06510.2040.6021 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_06510_2 |
| Type (Series) | 06510 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 20 |
| Nominal pressure | PN 50 |
| Kvs-value | 7.7 MQH |
| body material | CC491K |
| CV-Value | 9,2 gal/min |
| China approval | TS2700G39-2029 |
| Connection dimension inlet | M40 X 2,0 |
| Connection dimension outlet | 1/2'' |
| Connection inlet | male thread for metric |
| Connection outlet | female thread NPT |
| Canada approval | CRN 0C20592.5C |
