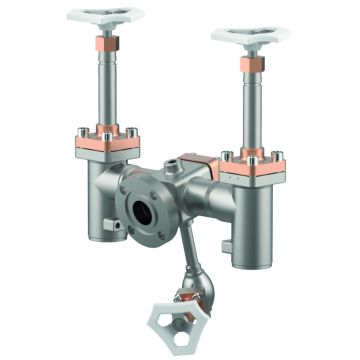

Fill Cluster DN40(1 1/2")
Fill Cluster DN40(1 1/2")
Connection outlet:
socket weld
Connection inlet:
flange DIN EN ISO 1092-1
Connection dimension outlet:
48,3 / 1.1/2''
Connection dimension inlet:
DN40 PN40
CV-Value:
58,0 gal/min
Kvs-value:
50.0 MQH
Nominal pressure:
PN 40
nominal size:
DN 40
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07022.4048.5000SHR
Price
Open product details
Fill Cluster DN40(1 1/2")
Fill Cluster DN40(1 1/2")
Connection outlet:
socket weld
Connection inlet:
flange
Connection dimension outlet:
48,3 / 1.1/2''
Connection dimension inlet:
Ø111 PN50
CV-Value:
58,0 gal/min
Kvs-value:
50.0 MQH
Nominal pressure:
PN 50
nominal size:
DN 40
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07028.4048.5000
Price
Open product details
Fill Cluster DN40(1 1/2")
Fill Cluster DN40(1 1/2")
Connection outlet:
welding end
Connection inlet:
flange DIN EN ISO 1092-1
Connection dimension outlet:
48,3 X 2,6 / 1.1/2'' S10
Connection dimension inlet:
DN40 PN40
CV-Value:
58,0 gal/min
Kvs-value:
50.0 MQH
Nominal pressure:
PN 40
nominal size:
DN 40
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07022.4048.5006
Price
Open product details
main_de

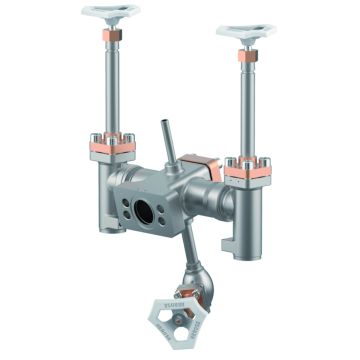

Fill Cluster DN40(1 1/2")
Connection outlet:
socket weld
Connection inlet:
AIR LIQUIDE flange
Connection dimension outlet:
48,3 / 1.1/2''
Connection dimension inlet:
DN40 PN50
CV-Value:
69,6 gal/min
Kvs-value:
60.0 MQH
Nominal pressure:
PN 50
nominal size:
DN 40
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07015.4048.0000
Price
Open product details
Fill Cluster DN40(1 1/2")
Fill Cluster DN40(1 1/2")
Connection outlet:
stainless steel pipe
Connection inlet:
stainless steel
Connection dimension outlet:
48,3 X 1,6 / 1.1/2'' S5
Connection dimension inlet:
48,3 X 2,0
CV-Value:
69,6 gal/min
Kvs-value:
60.0 MQH
Nominal pressure:
PN 50
nominal size:
DN 40
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07100.4048.9003
Price
Open product details
main_de
Fill Cluster DN40(1 1/2")
Connection outlet:
stainless steel pipe
Connection inlet:
Müller flange
Connection dimension outlet:
48,3 X 2,6 / 1.1/2'' S10
Connection dimension inlet:
DN40 PN50
CV-Value:
69,6 gal/min
Kvs-value:
60.0 MQH
Nominal pressure:
PN 50
nominal size:
DN 40
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07004.4048.9003
Price
Open product details
Fill Cluster DN40(1 1/2")
Fill Cluster DN40(1 1/2")
Connection outlet:
stainless steel pipe
Connection inlet:
stainless steel
Connection dimension outlet:
48,3 X 1,6 / 1.1/2'' S5
Connection dimension inlet:
48,3 X 2,0
CV-Value:
69,6 gal/min
Kvs-value:
60.0 MQH
Nominal pressure:
PN 50
nominal size:
DN 40
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07101.4048.9003
Price
Open product details
main_de
Fill Cluster DN25(1")
Connection outlet:
socket weld
Connection inlet:
AIR LIQUIDE flange
Connection dimension outlet:
33,7 / 1''
Connection dimension inlet:
DN40 PN50
CV-Value:
13,4 gal/min
Kvs-value:
11.5 MQH
Nominal pressure:
PN 50
nominal size:
DN 25
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07015.2533.0000
Price
Open product details
main_de

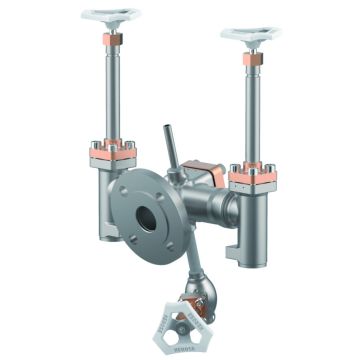

Fill Cluster DN40(1 1/2")
Connection outlet:
welding end
Connection inlet:
flange DIN EN ISO 1092-1
Connection dimension outlet:
48,3 X 2,0
Connection dimension inlet:
DN40 PN40
CV-Value:
58,0 gal/min
Kvs-value:
50.0 MQH
Nominal pressure:
PN 40
nominal size:
DN 40
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07012.4048.0007
Price
Open product details
main_de
Fill Cluster DN40(1 1/2")
Connection outlet:
socket weld
Connection inlet:
flange DIN EN ISO 1092-1
Connection dimension outlet:
48.3 / 1.1/2''
Connection dimension inlet:
DN40 PN40
CV-Value:
13,4 gal/min
Kvs-value:
11.5 MQH
Nominal pressure:
PN 40
nominal size:
DN 40
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07012.4048.0000
Price
Open product details
Fill Cluster DN25(1")
Fill Cluster DN25(1")
Connection outlet:
welding end
Connection inlet:
flange DIN EN ISO 1092-1
Connection dimension outlet:
33,7 X 2,6 / 1'' S10
Connection dimension inlet:
DN40 PN40
CV-Value:
37,1 gal/min
Kvs-value:
32.0 MQH
Nominal pressure:
PN 40
nominal size:
DN 25
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07022.2533.9002
Price
Open product details
main_de
Fill Cluster DN25(1")
Connection outlet:
stainless steel pipe
Connection inlet:
female thread BSPT
Connection dimension outlet:
33,7 X 2,6 / 1'' S10
Connection dimension inlet:
1.1/2''
CV-Value:
37,1 gal/min
Kvs-value:
32.0 MQH
Nominal pressure:
PN 50
nominal size:
DN 25
cleaned for oxygen service:
ISO 23208
Maximum allowable temperature:
120.0 °C
Maximum allowable temperature:
-196.0 °C
Article-No.: 07013.2533.5000
Price
Open product details
54 Products
of 5
Sort By

Fill cluster

A wide variety of HEROSE fittings can be combined and assembled into a system at the factory. This reduces the joining and welding effort on site and saves time and costs during installation on the vacuum-insulated stand tank. Cryo filling modules are available in sizes DN25 and DN40 and secure pressures up to 50 bar, at operating temperatures from -196°C up to +120°C.
