Fill Cluster DN40(1 1/2")

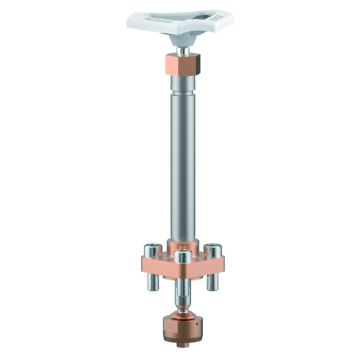

The product shown in the picture may differ from the product sold.
Description
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
inlet: MUELLER flange DN40 - 10° angle
,,,,with check function and drain valve
non-return unit metal to metal sealed, leakage rate D acc. to EN12266-1
outlet: 2 x Globe valve angle type DN40
,,,, with bonnet extension H=270mm CC493K
,,,, butt weld connection Ø48.26 x 2.77 (1.1/2" S10)
disc seal PCTFE
Relief connection: 1/4"NPT female thread
Drain valve: DN15, with bonnet extension H=270mm CC493K
connection 1/2"NPT female thread
,,,,,,disc seal PCTFE
screen Monel 2.4360 mesh 100mesh
Live Stock: Out-Of Stock pcs (ON STOCK)
SKU | 07016.4048.5A00 |
---|---|
HEROSE Type Reference | CR_07016 |
Type (Series) | 07016 |
Maximum allowable temperature | -196.0 °C |
Maximum allowable temperature | 120.0 °C |
cleaned for oxygen service | ISO 23208 |
nominal size | DN 40 |
Nominal pressure | PN 50 |
Kvs-value | 60.0 MQH |
CV-Value | 69,6 gal/min |
Connection dimension inlet | DN40 PN50 |
Connection dimension outlet | 48,3 X 2,6 / 1.1/2'' S10 |
Connection inlet | Müller flange |
Connection outlet | stainless steel pipe |
Canada approval | CRN 0C22962.5C |
