Fill Cluster DN40(1 1/2")

Cryogenic fill cluster DN40 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
Inlet 1.1/2"BSPT - 10° 1.4308 st.st.
with check function and drain valve
outlet 2x globe valve angle type DN40

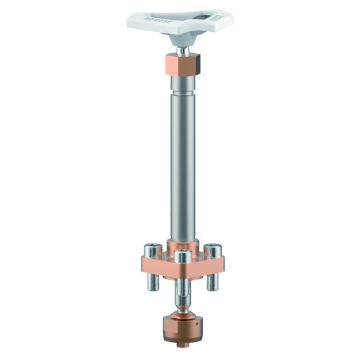

bronze topwork, extension H=370mm
butt weld connection for pipe 48.3 S10
disc seal PCTFE
Relief connection: socket for pipe Ø13.7mm

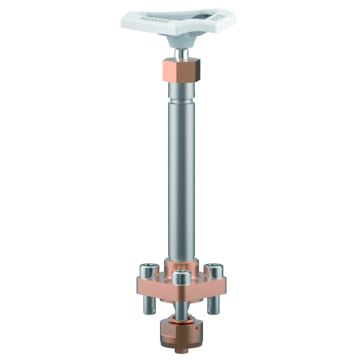

Drain valve: DN15, with bonnet extension H=270mm CC493K
connection 1/2"NPT female thread
disc seal PCTFE
