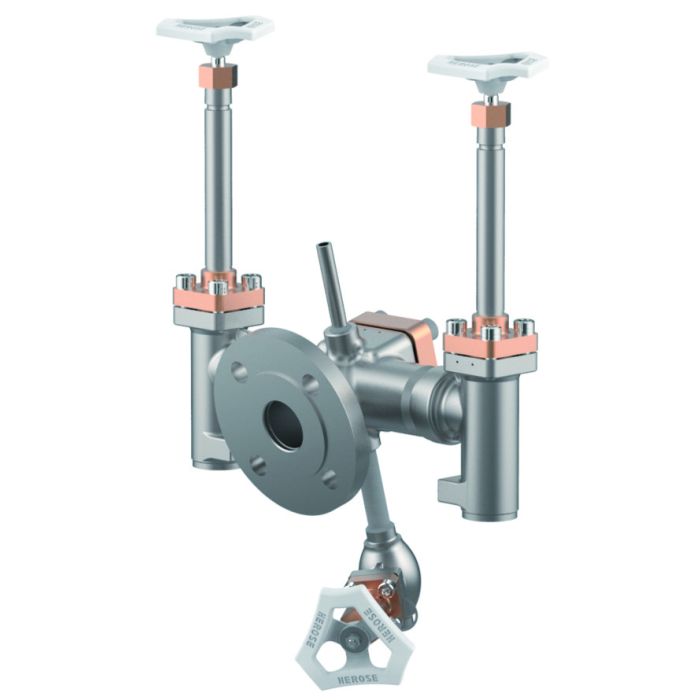

Fill Cluster DN25(1")
The product shown in the picture may differ from the product sold.
Fill Cluster DN25(1")
Article-No.: 07012.2533.5000
Price
POR
Description
Cryogenic fill cluster DN25 PN40
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
inlet flange DIN EN 1092-1 DN40 PN40, 15° angle
outlet socket end OD 33.4mm
face to face 225mm
with check function and drain valve(DN15)
non-return unit metal to metal sealed, leakage rate D acc. to EN12266-1
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
inlet flange DIN EN 1092-1 DN40 PN40, 15° angle
outlet socket end OD 33.4mm
face to face 225mm
with check function and drain valve(DN15)
non-return unit metal to metal sealed, leakage rate D acc. to EN12266-1
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 07012.2533.5000 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_07012 |
| Type (Series) | 07012 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 25 |
| Nominal pressure | PN 40 |
| Kvs-value | 32.0 MQH |
| CV-Value | 37,1 gal/min |
| Connection dimension inlet | DN40 PN40 |
| Connection dimension outlet | 33,7 / 1'' |
| Connection inlet | flange DIN EN ISO 1092-1 |
| Connection outlet | socket weld |
Related Type
Datasheet ID: CR_07012
Type 07012 - Fill cluster with check function
Datasheet ID: CR_07012
