Fill Cluster DN40(1 1/2")

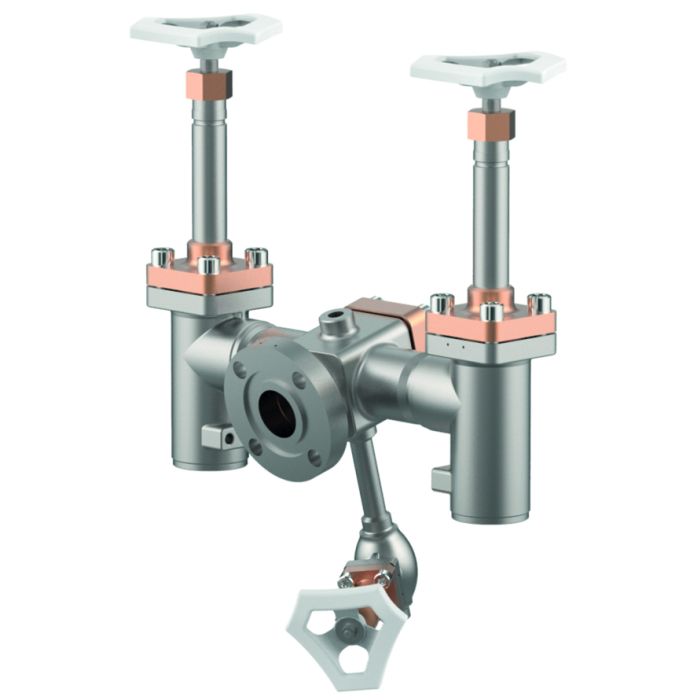

The product shown in the picture may differ from the product sold.
Description
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
gland nut CW612N bronze
inlet: flange ø111mm
,,,,with check function and drain valve
outlet: 2 x Globe valve angle type DN40
,,,, with bonnet extension H=270mm CC493K bronze
,,,, socket end OD 48.3mm
Relief-connection: butt weld connection ø12mm x 2mm
Drain valve: DN15; bonnet CC493K bronze
connection socket end OD 17.5mm
face to face 225mm
Live Stock: Out-Of Stock pcs (ON STOCK)
SKU | 07018.4048.5000 |
---|---|
Solution | LNG, Air Gases |
Solution Area | Transport, Storage, Refueling |
HEROSE Type Reference | CR_07018_1 |
Type (Series) | 07018 |
Maximum allowable temperature | -196.0 °C |
Maximum allowable temperature | 120.0 °C |
cleaned for oxygen service | ISO 23208 |
nominal size | DN 40 |
Nominal pressure | PN 50 |
Kvs-value | 60.0 MQH |
CV-Value | 69,6 gal/min |
Connection dimension inlet | 39,0 |
Connection dimension outlet | 48,3 / 1.1/2'' |
Connection inlet | flange |
Connection outlet | socket weld |
Canada approval | CRN 0C22962.5C |
