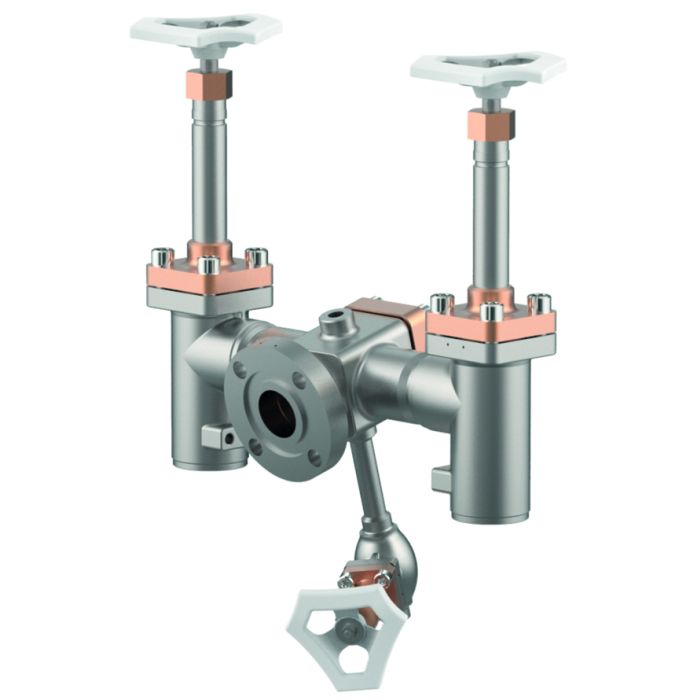

Type 07018 - Fill cluster with check function

Datasheet ID: CR_07018_1
Field of application

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Certificates
Gost Ukraine (Gost Ukraine)
Pressure Equipment Directive (2014/68/EU)
More Information
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling
SKU CR_07018_1
Materials

Materials

DIN EN

ASTM

1

Fill body

1.4308

A 351 CF8

2

Body

1.4308

A 351 CF8

3

Valve seal

PTFE / Carbon filled (25%)

4

Disc

CW614N

B 283 UNS C38500

5

Bonnet gasket

PTFE

6

Headpiece

CC493K

B 505 UNS C93200

7

Bolts

1.4301/A2

A 194 B8

8

Elongation tube

1.4541

A 213 TP 321

9

Stem

1.4301

A 276 Grade 304

10

Gland packing

Graphite / PTFE

11

Gland nut

CC493K

B 505 UNS C93200

12

Handwheel

Aluminium alloy

Versions

Type 07018 - Standard design

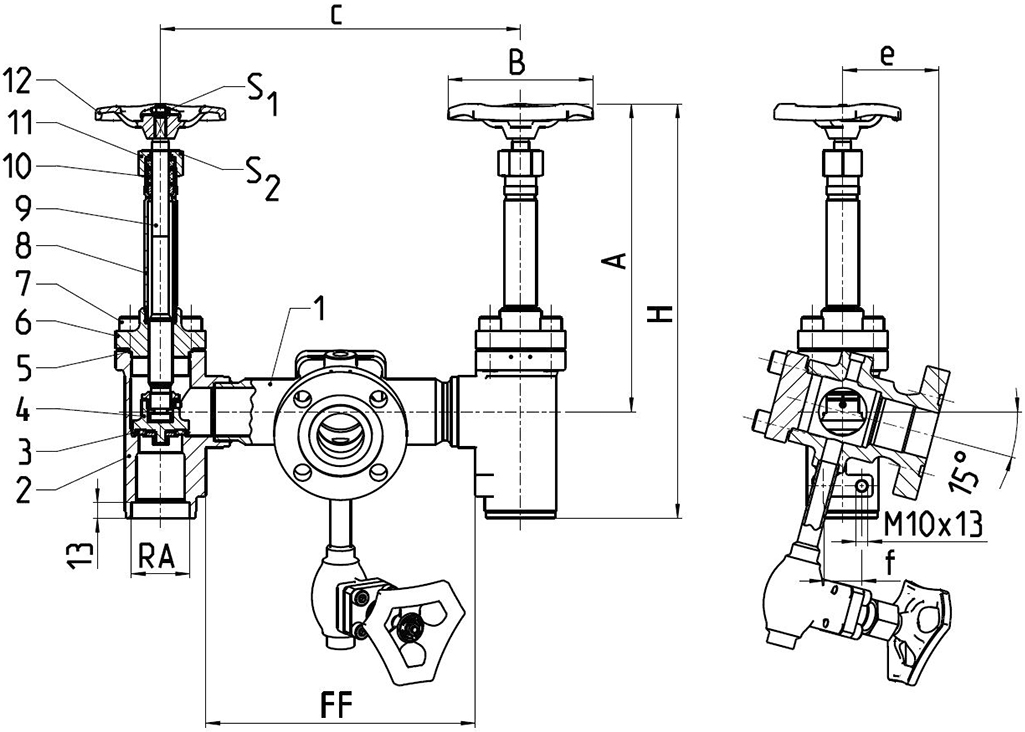

Technical data

Nominal size

DN

25

40

40

Dimension code

.X.

2533

4045

4048

Face-to-face dimension

FF

225

225

225

Outside pipe-Ø ASTM A312

RA

33.7

45.4

48.3

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

13

13

13

Height

A

270

270

270

Height

H

735

735

735

Length

c

295

301

301

Length

e

82

82

82

Length

f

32

32

32

Handwheel-Ø

B

100

125

125

Wrench size across flats

S1

10

13

13

Wrench size across flats

S2

27

32

32

Weight

ca. kg

11.5

14.9

14.9
