Fill Cluster DN25(1")
The product shown in the picture may differ from the product sold.
Fill Cluster DN25(1")
Article-No.: 07016.2533.5100
Price
POR
Description
Cryogenic fill cluster DN25 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
Inlet MUELLER flange DN40 - 10° angle 1.4308 st.st.
with check function and drain valve
non-return unit metal to metal sealed, leakage rate D acc. to EN12266-1
outlet 2x globe valve angle type DN25

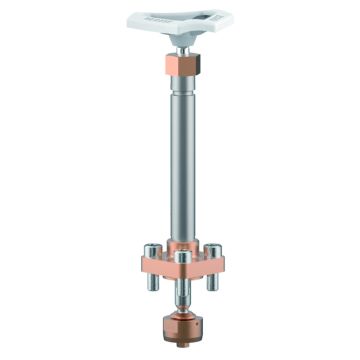

bronze topwork, extension H=370mm
butt weld connection Ø33.4 x 2.77 (1" S10)
disc seal PCTFE
Relief connection: 1/4"NPT female thread
Drain valve: DN15, with bonnet extension H=270mm CC493K
connection 1/2"NPT female thread
disc seal PCTFE
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
Inlet MUELLER flange DN40 - 10° angle 1.4308 st.st.
with check function and drain valve
non-return unit metal to metal sealed, leakage rate D acc. to EN12266-1
outlet 2x globe valve angle type DN25
bronze topwork, extension H=370mm
butt weld connection Ø33.4 x 2.77 (1" S10)
disc seal PCTFE
Relief connection: 1/4"NPT female thread
Drain valve: DN15, with bonnet extension H=270mm CC493K
connection 1/2"NPT female thread
disc seal PCTFE
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 07016.2533.5100 |
|---|---|
| HEROSE Type Reference | CR_07016 |
| Type (Series) | 07016 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 25 |
| Nominal pressure | PN 50 |
| Kvs-value | 32.0 MQH |
| CV-Value | 37,1 gal/min |
| Connection dimension inlet | DN40 PN50 |
| Connection dimension outlet | 33,7 X 2,6 / 1'' S10 |
| Connection inlet | Müller flange |
| Connection outlet | stainless steel pipe |
| Canada approval | CRN 0C22962.5C |
