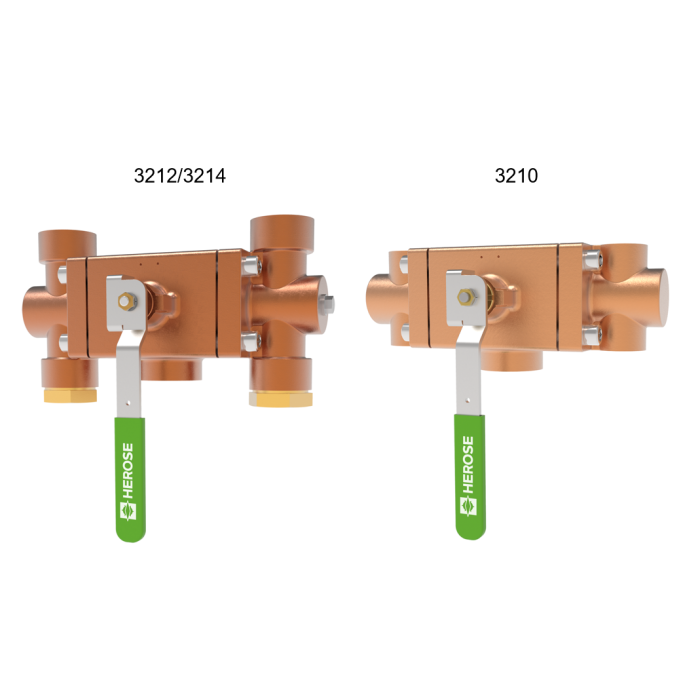

Wechselkugelhahn DN32 (1 1/4")

Article-No.: 06510.3260.6037BR
Description
Ball Divertor Valve DN32 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball CW452K bronze
gland packing graphit/PTFE
inlet: bullnose conn. with pipe 11/2"-6" long
outlet on the top: 2x 3/4"NPTF female thread
bursting disc/test connection 2x 1"NPTF female thread
connection 2x 1/4"NPTF female thread
mounting hole 2x 3/8"-16 UNC
with seperate inlet pipe 290 mm long
face to face 284mm
"Oxygen clean and package per CGA G 4.1"
More Information
SKU 06510.3260.6037BR
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling
HEROSE Type Reference CR_06510_3
Type (Series) 06510
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 32
Nominal pressure PN 50
Kvs-value 16.7 MQH
body material CC491K
CV-Value 19,4 gal/min
China approval TS2700G39-2029
Connection dimension inlet 48,3 X 1,6 / 1.1/2'' S5
Connection dimension outlet 3/4''
Connection inlet SCHWEIßKUGELBUCHSE
Connection outlet female thread NPT
Canada approval CRN 0C20592.5C
