Type 06510 - Diverter Valve
Click on the product image for a larger view.
Field of application
Important:
The valves must be fixed at the
provided threads M12.
Spare part kit for lever replacement:
For Change-over Valves 0651X,
there is a spare part kit available for
replacing the lever (also suitable for
versions before 07/2024).
DN20 30320.0200.0783
DN32 30320.0320.0783
Certificates
EAC - Eurasian Conformity (010/2011)
Pressure Equipment Directive (2014/68/EU)
type-examination for LNG (DIN EN 12567)
EAC - Eurasian Conformity (032/2013)
Gost Ukraine (Gost Ukraine)
License of Special Equipment (China) (TS)
Operating Instructions
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling |
| SKU | CR_06510_3 |
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body I |
CC491K |
B 62 UNS C83600 |
2 |
Body II |
CC491K |
B 62 UNS C83600 |
3 |
Ball |
1.4571 |
A 276 Grade 316Ti |
4 |
Seat rings |
PCTFE |
|
5 |
Bush |
CW614N |
B 283 UNS C38500 |
6 |
Spring plates |
1.4571 |
A 313 Grade 316Ti |
7 |
Spring clamp |
CW614N |
B 283 UNS C38500 |
8 |
Thread ring |
CW614N |
B 283 UNS C38500 |
10 |
Stem |
1.4301 |
A 276 Grade 304 |
11 |
Gland packing |
Graphit / PTFE |
|
12 |
Lever |
CC491K |
B 62 UNS C83600 |

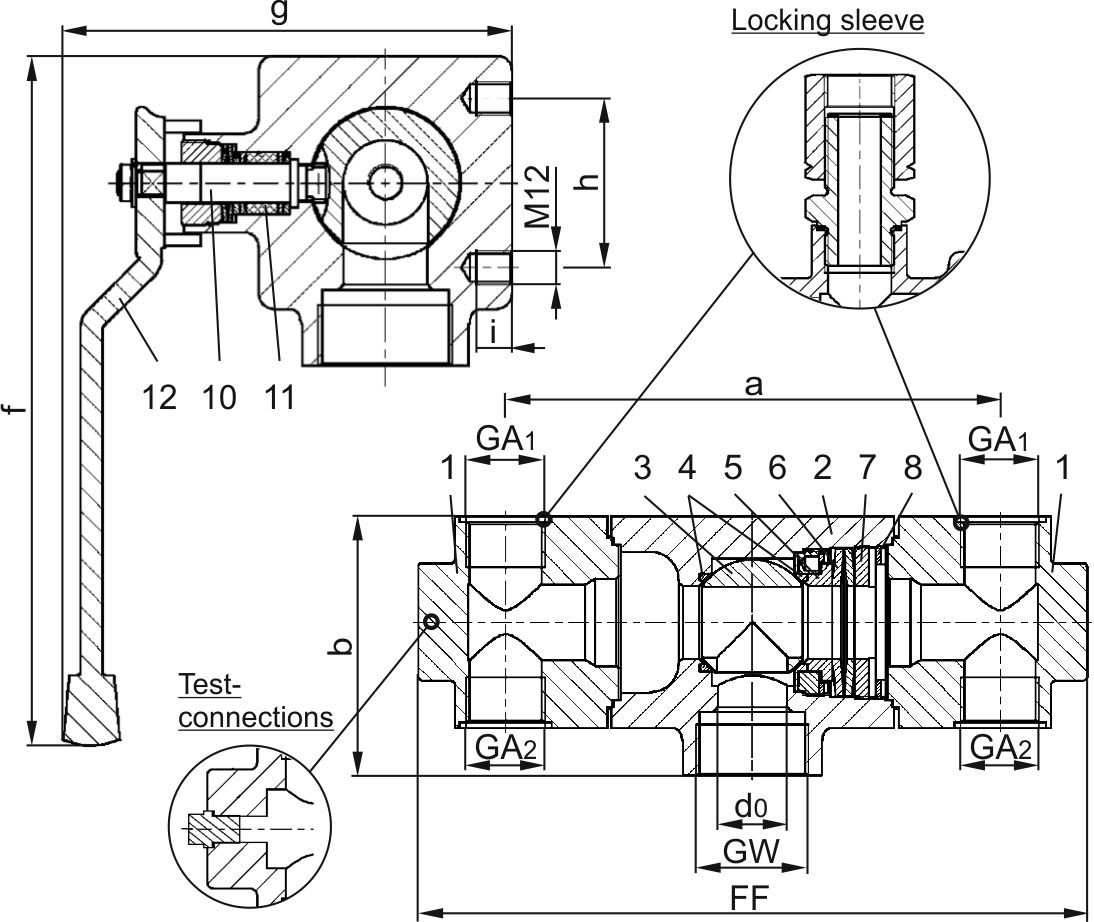

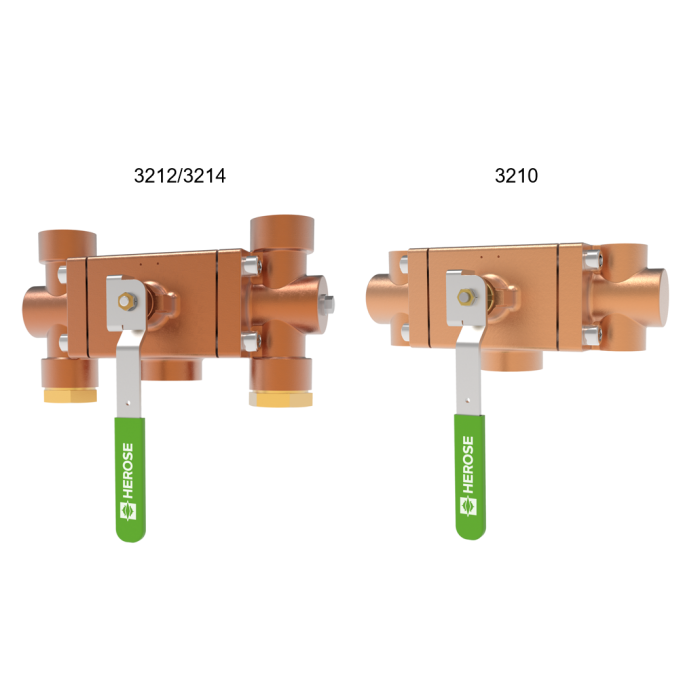

Type 06510 - Standard design |
Technical data |
|||
|---|---|---|---|---|
Nominal size |
DN |
32 |
32 |
32 |
Dimension code |
.X. |
3210 |
3212 |
3214 |
Flow diameter |
d0 |
30 |
30 |
30 |
Inlet |
GW |
1-1/2 |
1-1/2 |
1-1/2 |
Outlet |
GA1 |
1 |
1-1/4 |
1-1/2 |
Outlet |
GA2 |
1 |
1-1/4 |
1-1/2 |
Face-to-face dimension |
FF |
300 |
284 |
284 |
Length |
a |
210 |
210 |
210 |
Height |
b |
110 |
145 |
145 |
Length |
f |
245 |
245 |
245 |
Length |
g |
160 |
160 |
160 |
Length |
h |
60 |
60 |
60 |
Thread depth |
i |
12.5 |
12.5 |
12.5 |
Weight |
ca. kg |
12.2 |
13.5 |
13.5 |
Kvs - Value, one side open |
m³/h |
15.0 |
15.0 |
15.0 |
Cv - Value, one side open |
gal /min |
17.4 |
17.4 |
17.4 |
Kvs - Value, both sides open |
m³/h |
27.0 |
27.0 |
27.0 |
Cv - Value, both sides open |
gal /min |
31.4 |
31.4 |
31.4 |
Product Variants
