Changeover Ball Valve DN32(1 1/4")

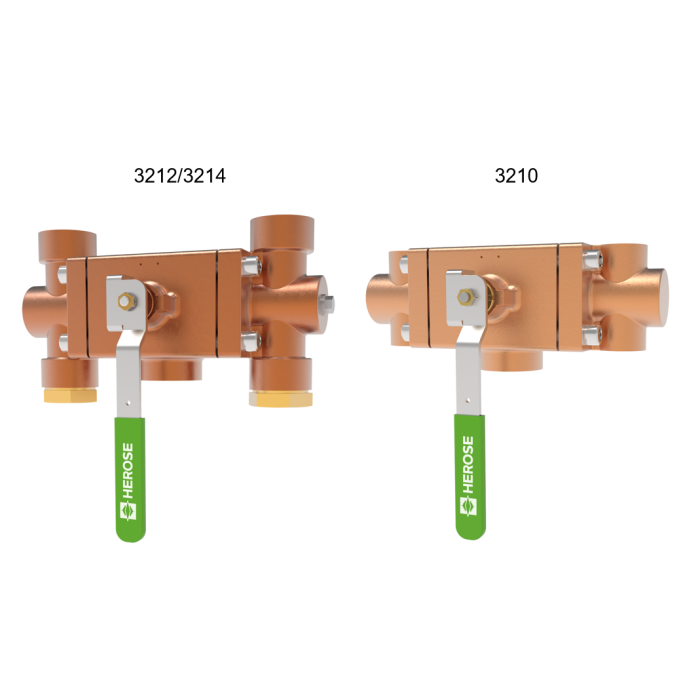

The product shown in the picture may differ from the product sold.
Changeover Ball Valve DN32(1 1/4")
Article-No.: 06510.3210.6005
Price
POR
Description
Cryogenic Changeover Ball Valve DN32 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet 1.1/2"NPT female thread
outlet 2x1"NPT female thread
with screw plug st.st. 1.4301
bursting disc 2x 1"NPT female thread
without test connection
mounting hole 2x M12
face to face 283mm
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet 1.1/2"NPT female thread
outlet 2x1"NPT female thread
with screw plug st.st. 1.4301
bursting disc 2x 1"NPT female thread
without test connection
mounting hole 2x M12
face to face 283mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06510.3210.6005 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_06510_3 |
| Type (Series) | 06510 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 32 |
| Nominal pressure | PN 50 |
| Kvs-value | 16.7 MQH |
| body material | CC491K |
| CV-Value | 19,4 gal/min |
| China approval | TS2700G39-2025 |
| Connection dimension inlet | 1.1/2'' |
| Connection dimension outlet | 1'' |
| Connection inlet | female thread NPT |
| Connection outlet | female thread NPT |
| Canada approval | CRN 0C20592.5C |
