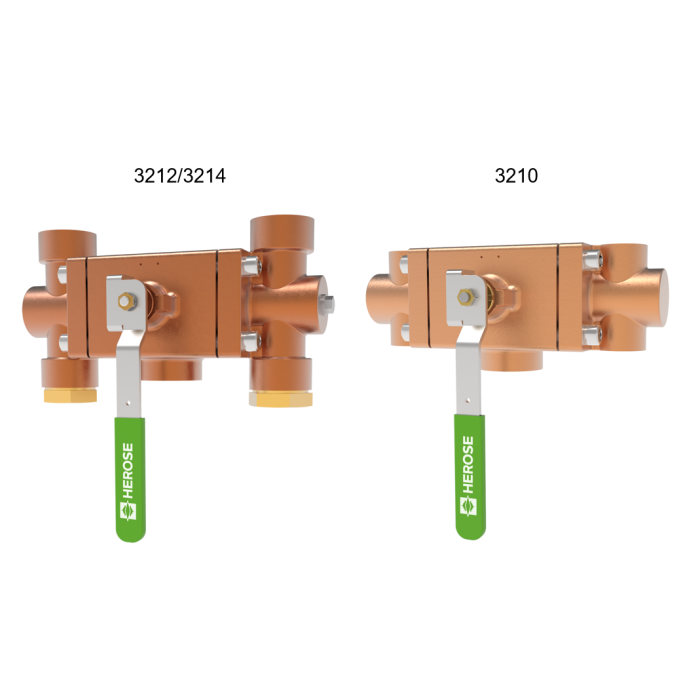

Changeover Ball Valve DN32(1 1/4")
Click on the product image for a larger view.
Changeover Ball Valve DN32(1 1/4")
Article-No.: 06510.3210.6326
Price
POR
Description
Cryogenic Changeover Ball Valve DN32 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet Union type conn. M55x2 with bullnose
to weld pipe Ø45x3mm
outlet 2x 1"NPT female thread
bursting disc connection 2x 1"NPT female thread with
with screw plug 1.4301
test connection 2x 1/4"NPT female thread
with screw plug 1.4571
mounting hole 2x M12
face to face 305mm
flow diameter do=28
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet Union type conn. M55x2 with bullnose
to weld pipe Ø45x3mm
outlet 2x 1"NPT female thread
bursting disc connection 2x 1"NPT female thread with
with screw plug 1.4301
test connection 2x 1/4"NPT female thread
with screw plug 1.4571
mounting hole 2x M12
face to face 305mm
flow diameter do=28
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06510.3210.6326 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_06510_3 |
| Type (Series) | 06510 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 32 |
| Nominal pressure | PN 50 |
| Kvs-value | 16.7 MQH |
| body material | CC491K |
| CV-Value | 19,4 gal/min |
| China approval | TS2700G39-2025 |
| Connection dimension inlet | 45,0 x 3,0 |
| Connection dimension outlet | 1'' |
| Connection inlet | SCHWEIßKUGELBUCHSE |
| Connection outlet | female thread NPT |
| Canada approval | CRN 0C20592.5C |
Related Type
Datasheet ID: CR_06510_3
