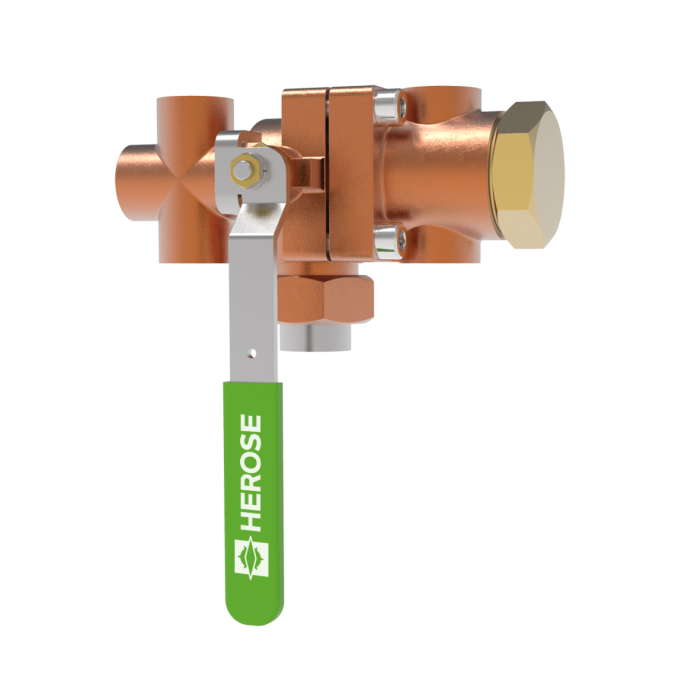

Changeover Ball Valve DN20(3/4")

Article-No.: 06510.2047.C020
Description
Cryogenic Changeover Ball Valve DN20 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet 1.4571 st.st. with brazed pipe ø33.7mm
x 3.2mm
outlet 2x 1/2"BSPP female thread
bursting disc/test connection 2x 1/2"BSPP female thread
with st.st. screw plug
test connection edgeways: 2 x 1/4"BSPT female thread
with st.st. screw plug
mounting hole 2x M10
face to face 201mm
More Information
SKU 06510.2047.C020
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling
HEROSE Type Reference CR_06510_2
Type (Series) 06510
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 20
Nominal pressure PN 50
Kvs-value 7.7 MQH
body material CC491K
CV-Value 9,2 gal/min
China approval TS2700G39-2029
Connection dimension inlet 30,2 X 1,45
Connection dimension outlet 1/2''
Connection inlet stainless steel
Connection outlet female thread BSPP
Canada approval CRN 0C20592.5C
