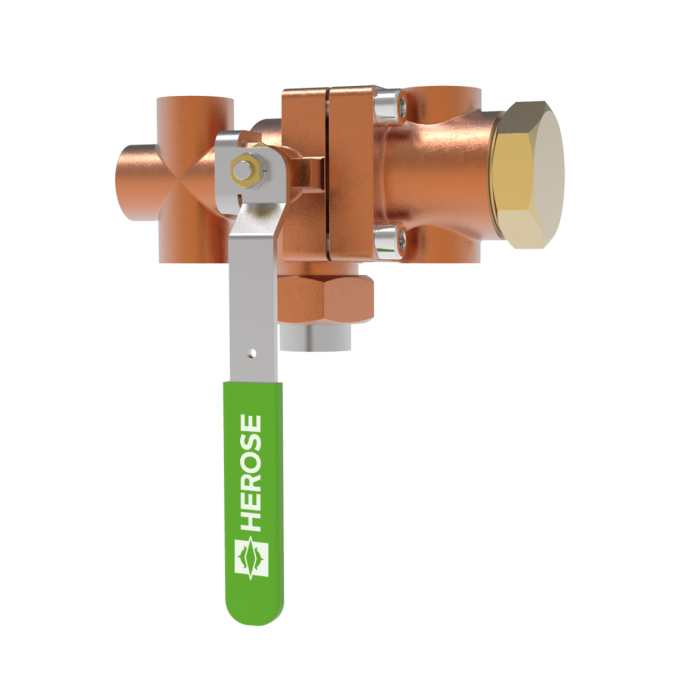

Type 06510 - Diverter Valve
Click on the product image for a larger view.
Field of application
Important:
The valves must be fixed at the
provided threads M10.
Spare part kit for lever replacement:
For Change-over Valves 0651X,
there is a spare part kit available for
replacing the lever (also suitable for
versions before 07/2024).
DN20 30320.0200.0783
DN32 30320.0320.0783
Certificates
EAC - Eurasian Conformity (010/2011)
Pressure Equipment Directive (2014/68/EU)
type-examination for LNG (DIN EN 12567)
EAC - Eurasian Conformity (032/2013)
Gost Ukraine (Gost Ukraine)
License of Special Equipment (China) (TS)
Operating Instructions
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling |
| SKU | CR_06510_2 |

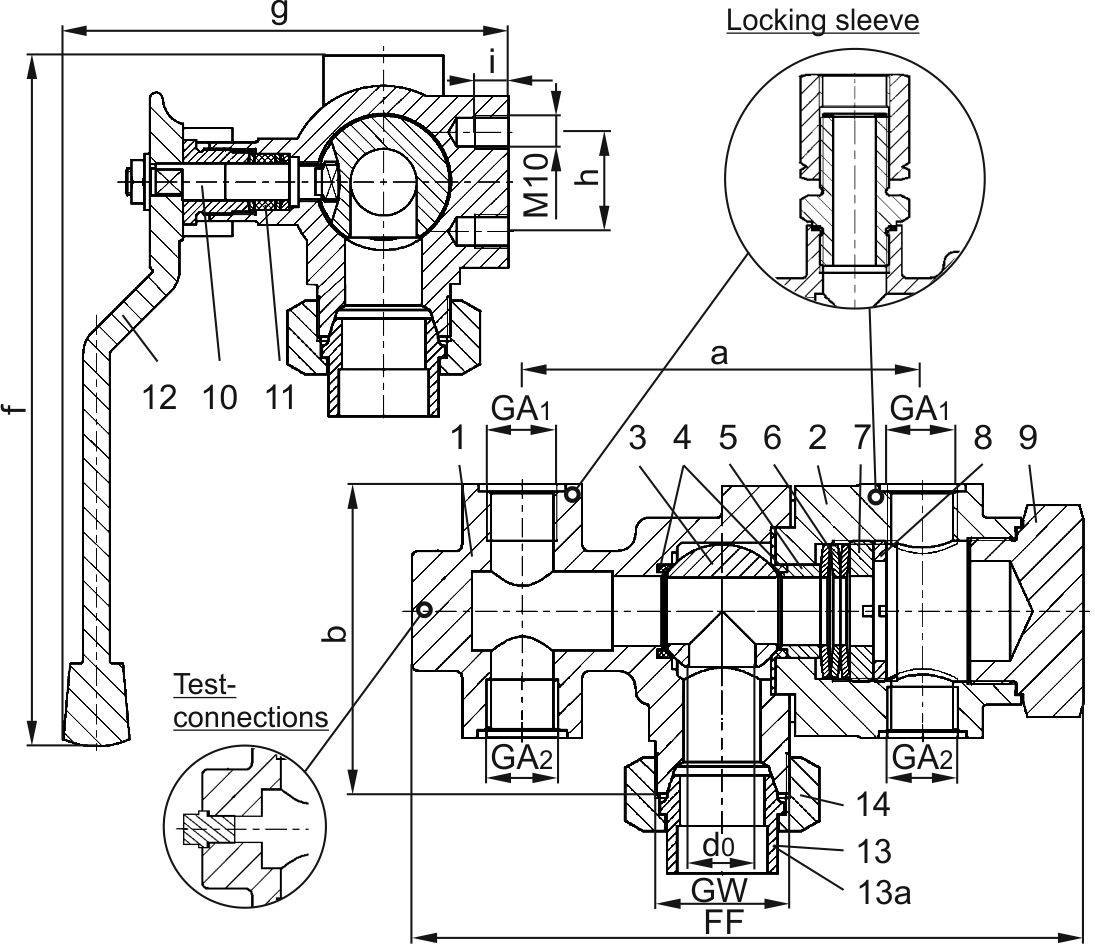

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body I |
CC491K |
B 62 UNS C83600 |
2 |
Body II |
CC491K |
B 62 UNS C83600 |
3 |
Ball |
1.4571 |
A 276 Grade 316Ti |
4 |
Seat rings |
PCTFE |
|
5 |
Bush |
CW614N |
B 283 UNS C38500 |
6 |
Spring plates |
1.4571 |
A 313 Grade 316Ti |
7 |
Spring clamp |
CW614N |
B 283 UNS C38500 |
8 |
Thread ring |
CW614N |
B 283 UNS C38500 |
9 |
Plug |
CW614N |
B 283 UNS C38500 |
10 |
Stem |
1.4301 |
A 276 Grade 304 |
11 |
Gland packing |
Graphit / PTFE |
|
12 |
Lever |
CC491K |
B 62 UNS C83600 |
13 |
Braze fitting |
CC493K |
B 505 UNS C93200 |
13a |
Weld fitting |
1.4301 |
A 276 Grade 304 |
14 |
Union nut |
CC493K |
B 505 UNS C93200 |
Type 06510 - Standard design |
Technical data |
||
|---|---|---|---|
Nominal size |
DN |
20 |
20 |
Dimension code |
.X. |
2040 |
2060 |
Flow diameter |
d0 |
20 |
20 |
Inlet |
GW |
M40x2 |
M40x2 |
Outlet |
GA1 |
1/2 |
3/4 |
Outlet |
GA2 |
1/2 |
1/2 |
Face-to-face dimension |
FF |
201 |
201 |
Length |
a |
120 |
120 |
Height |
b |
92 |
92 |
Length |
f |
208 |
208 |
Length |
g |
134 |
134 |
Length |
h |
30 |
30 |
Thread depth |
i |
10 |
10 |
Wrench size across flats |
S1 |
50 |
50 |
Weight |
ca. kg |
5.1 |
5.0 |
Kvs - Value, one side open |
m³/h |
7.7 |
7.7 |
Cv - Value, one side open |
gal /min |
9.2 |
9.2 |
Product Variants
Filter our product by specific attributes| Name | Anschlussart Austritt | Anschlussart Eintritt | Anschlussdimension Austritt | Anschlussdimension Eintritt | Cv-Wert | Nennweite | Link to product |
|---|
- ...
- ...

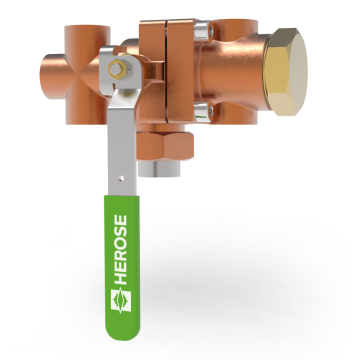

Related Type
- Connection outlet:
- female thread BSPP
- Connection inlet:
- LOETKUGELBUCHSE
- Connection dimension outlet:
- 1/2''
- Connection dimension inlet:
- 26,9 / 3/4''
- CV-Value:
- 9,2 gal/min
- Kvs-value:
- 7.7 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 20
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- female thread BSPP
- Connection inlet:
- LOETKUGELBUCHSE
- Connection dimension outlet:
- 3/4''
- Connection dimension inlet:
- 26,9 / 3/4''
- CV-Value:
- 9,2 gal/min
- Kvs-value:
- 7.7 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 20
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- female thread NPT
- Connection inlet:
- SCHWEIßKUGELBUCHSE
- Connection dimension outlet:
- 3/4''
- Connection dimension inlet:
- 33,7 x 2,6 / 1'' S10
- CV-Value:
- 9,2 gal/min
- Kvs-value:
- 7.7 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 20
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- female thread BSPP
- Connection inlet:
- male thread for metric
- Connection dimension outlet:
- 3/4''
- Connection dimension inlet:
- M40 X 2,0
- CV-Value:
- 9,2 gal/min
- Kvs-value:
- 7.7 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 20
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- female thread BSPP
- Connection inlet:
- SCHWEIßKUGELBUCHSE
- Connection dimension outlet:
- 3/4''
- Connection dimension inlet:
- 28,0 x 1,5
- CV-Value:
- 9,2 gal/min
- Kvs-value:
- 7.7 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 20
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- female thread BSPP
- Connection inlet:
- SCHWEIßKUGELBUCHSE
- Connection dimension outlet:
- 3/4''
- Connection dimension inlet:
- 33,7 x 2,6 / 1'' S10
- CV-Value:
- 9,2 gal/min
- Kvs-value:
- 7.7 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 20
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- female thread BSPP
- Connection inlet:
- SCHWEIßKUGELBUCHSE
- Connection dimension outlet:
- 3/4''
- Connection dimension inlet:
- 33,7 x 2,6 / 1'' S10
- CV-Value:
- 9,2 gal/min
- Kvs-value:
- 7.7 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 20
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- female thread BSPP
- Connection inlet:
- LOETKUGELBUCHSE
- Connection dimension outlet:
- 3/4''
- Connection dimension inlet:
- 28
- CV-Value:
- 9,2 gal/min
- Kvs-value:
- 7.7 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 20
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
