Wechselkugelh. DN20 33,4S10 3/4"NPT

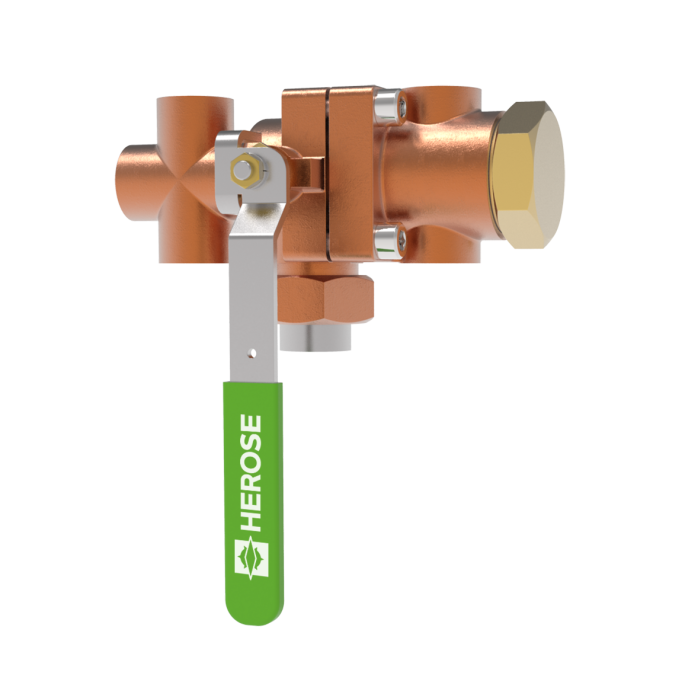

Click on the product image for a larger view.
Wechselkugelh. DN20 33,4S10 3/4"NPT
Article-No.: 06510.2060.6026
Price
POR
Description
Cryogenic Changeover Ball Valve DN20 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet 1.4301 st.st. union type fittings RA ø33.4mm
outlet 2x 3/4"NPT female thread
bursting disc/test connection 2x 1/2"NPT female thread
with screw plug
connection 2x G1/4 female thread with screw plug
mounting hole 2x M10
face to face 220mm
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet 1.4301 st.st. union type fittings RA ø33.4mm
outlet 2x 3/4"NPT female thread
bursting disc/test connection 2x 1/2"NPT female thread
with screw plug
connection 2x G1/4 female thread with screw plug
mounting hole 2x M10
face to face 220mm
Delivery Time:
5 week(s)
More Information
| SKU | 06510.2060.6026 |
|---|---|
| Delivery Time | 5 |
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| Type (Series) | 06510 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 20 |
| Nominal pressure | PN 50 |
| Kvs-value | 7.7 MQH |
| body material | CC491K |
| CV-Value | 9,2 gal/min |
| China approval | TS2700G39-2025 |
| Connection dimension inlet | 33,7 X 2,6 / 1'' S10 |
| Connection dimension outlet | 3/4'' |
| Connection inlet | completed with union |
| Connection outlet | female thread NPT |
| Canada approval | CRN 0C20592.5C |
