Changeover Ball Valve DN32(1 1/4")

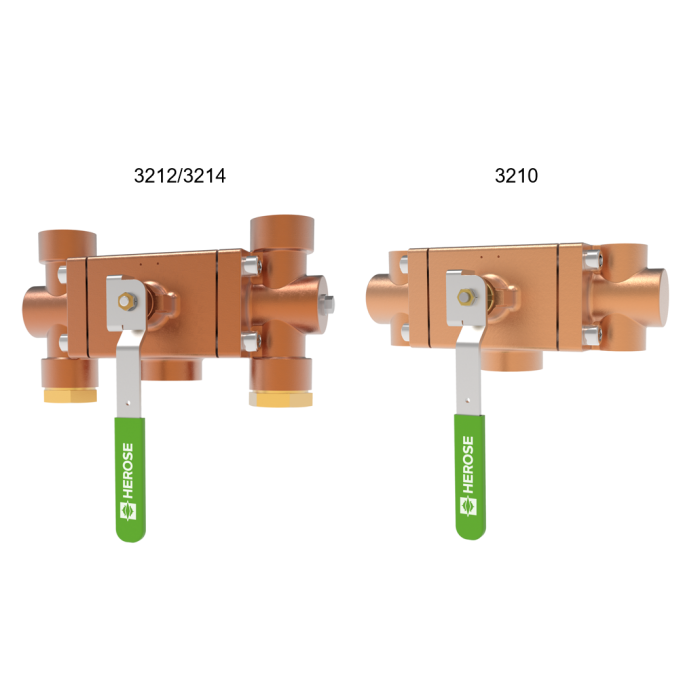

The product shown in the picture may differ from the product sold.
Description
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet: bullnose conn. with pipe 11/2"-6" long
outlet on the top: 2x 3/4"NPTF female thread
bursting disc/test connection 2x 1"NPTF female thread
connection 2x 1/4"NPTF female thread
mounting hole 2x 3/8"-16 UNC
face to face 284mm
"Oxygen clean and package per CGA G 4.1"
Live Stock: Out-Of Stock pcs (ON STOCK)
SKU | 06510.3260.6037 |
---|---|
Solution | LNG, Air Gases |
Solution Area | Transport, Storage, Refueling |
HEROSE Type Reference | CR_06510_3 |
Type (Series) | 06510 |
Maximum allowable temperature | -196.0 °C |
Maximum allowable temperature | 120.0 °C |
cleaned for oxygen service | ISO 23208 |
nominal size | DN 32 |
Nominal pressure | PN 50 |
Kvs-value | 16.7 MQH |
body material | CC491K |
CV-Value | 19,4 gal/min |
China approval | TS2700G39-2025 |
Connection dimension inlet | 48,3 X 1,6 / 1.1/2'' S5 |
Connection dimension outlet | 3/4'' |
Connection inlet | SCHWEIßKUGELBUCHSE |
Connection outlet | female thread NPT |
Canada approval | CRN 0C20592.5C |
