Changeover Ball Valve DN20(3/4")

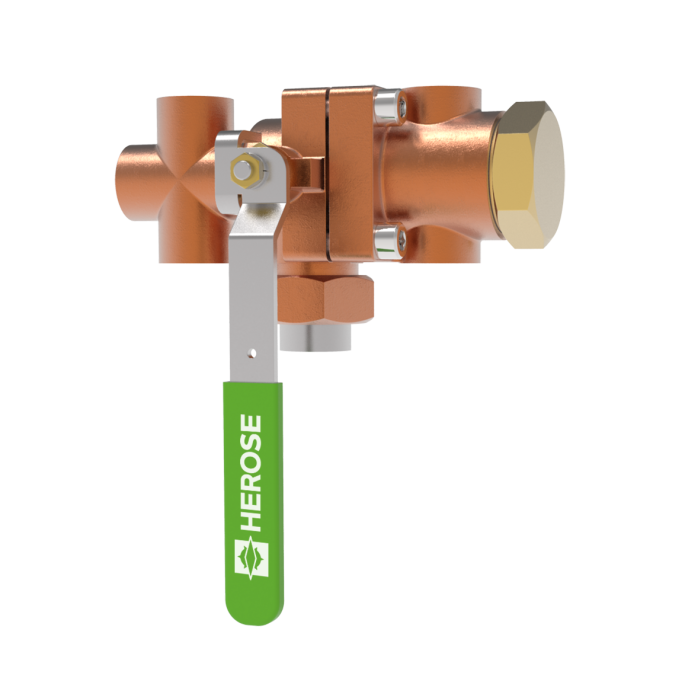

calcPageSize())" loading="lazy" />The product shown in the picture may differ from the product sold.
Description
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
ball 1.4571 st.st.
gland packing graphit/PTFE
inlet 1.4301 st.st. union type fittings OD 1"S10
outlet 2x 1/2"NPT female thread
bursting disc/test connection 2x 1/2"NPT female thread
with screw plug
connection 2x 1/4"NPT female thread
with screw plug
mounting hole 2x M10
face to face 220mm
Live Stock: Out-Of Stock pcs (ON STOCK)
| SKU | 06510.2040.6426 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_06510_2 |
| Type (Series) | 06510 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 20 |
| Nominal pressure | PN 50 |
| Kvs-value | 7.7 MQH |
| body material | CC491K |
| CV-Value | 9,2 gal/min |
| China approval | TS2700G39-2029 |
| Connection dimension inlet | 33,7 x 2,6 / 1'' S10 |
| Connection dimension outlet | 1/2'' |
| Connection inlet | SCHWEIßKUGELBUCHSE |
| Connection outlet | female thread NPT |
| Canada approval | CRN 0C20592.5C |
