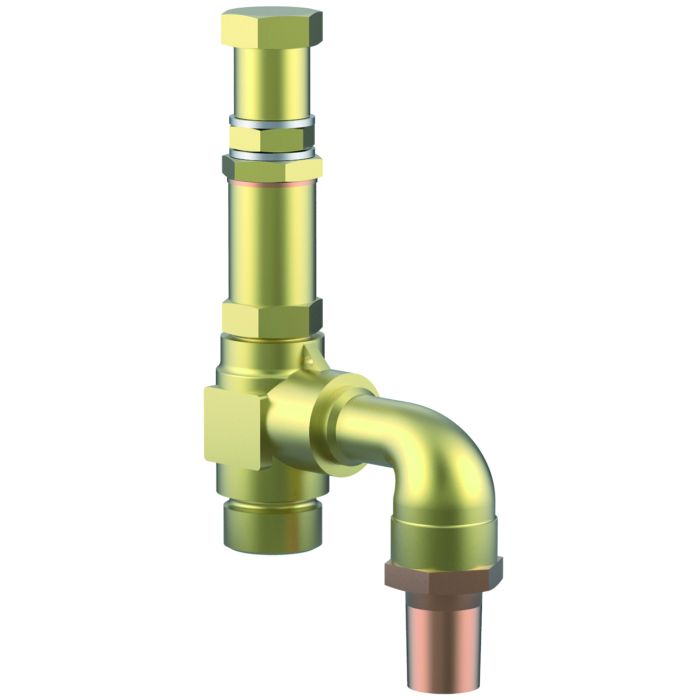

Overflow Valve DN15(1/2") d0 6

The product shown in the picture may differ from the product sold.
Description
for vapours and gases
cleaned and degreased for oxygen services
working temperature -196°C up to +65°C
bonnet CW614N brass closed bonnet
inlet CW610N brass 1/2"BSPP male thread
outlet CC491K bronze 3/8"BSPT with mounted elbow and
,,,,,,,,,,,,,,,,silencer (CC483K/CuSn12)
disc PTFE/Electrocarbon 25%
orifice 6.0mm
pressure range 28.00bar up to 36.00bar
36,0bar 97 kg/h
with adjustment unit
Not to use as equipment with safety function acc.
to Pressure Equipment Directive 2014/68/EU (PED)
I M P O R T A N T!!!
Without CE - marking
Live Stock: Out-Of Stock pcs (ON STOCK)
SKU | 06001.0400.9004 |
---|---|
Solution | LNG |
Solution Area | Transport, Storage, Refueling, Processes |
HEROSE Type Reference | CR_06001_2 |
Type (Series) | 06001 |
Maximum allowable temperature | -196.0 °C |
Maximum allowable temperature | 65.0 °C |
body material | CW610N |
Connection dimension inlet | 1/2'' |
Connection dimension outlet | G3/8 |
Connection inlet | male thread BSPP |
Connection outlet | ROHRBOGEN |
Pressure range BAR | 28,00 - 36,00 bar |
Pressure range KPA | 2.800,00 - 3.600,00 kPa |
Pressure range PSI | 406,00 - 522,00 PSI |
