Type 06001

Datasheet ID: CR_06001_2
Field of application

Applications:

Provided as overflow valve for protection against excessive pressure in pipe systems and pressure

vessels, which are not subject to approval.

Working temperature: -196°C / -321°F (77K) up to +65°C / +149°F (338K)

Certificates
Transportable Pressure Equipment Directive (2010/35/EU)
EAC - Eurasian Conformity (010/2011)
EAC - Eurasian Conformity (032/2013)
Pressure Equipment Directive (2014/68/EU)
Gost Ukraine (Gost Ukraine)
License of Special Equipment (China) (TS)
Gas Cylinder Rules 2016 (India) (GCR 2016)
Korean Gas Safety (KGS)
TÜV Verband (Approval mark number)
Operating Instructions
More Information
Solution LNG
Solution Area Transport, Storage, Refueling, Processes
SKU CR_06001_2

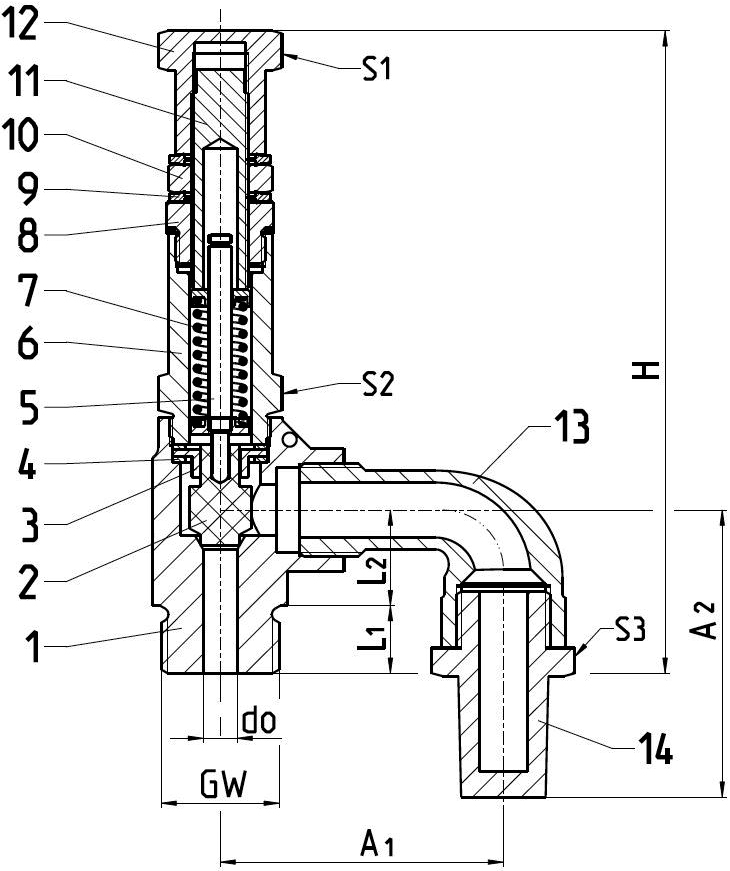

Materials

Materials

DIN EN

ASTM

1

Body

CW610N

B 283 UNS C36500

2

Disc

PTFE / Carbon filled (25%)

3

Guide plate

CW614N

B 283 UNS C38500

4

Copper ring

Copper

Copper

5

Stem

CW614N

B 283 UNS C38500

6

Bonnet

CW614N

B 283 UNS C38500

7

Spring

1.4571

A 313 Grade 316Ti

8

Cap

CW614N

B 283 UNS C38500

9

Ring

FKM/V4A

10

Nut

CW614N

B 283 UNS C38500

11

Adjusting screw

CW614N

B 283 UNS C38500

12

Closing cap

CW614N

B 283 UNS C38500

13

Elbow

CW614N

B 283 UNS C38500

14

Silencer

CC483K

B 30 UNS C90800
Versions

Type 06001

Technical data

Nominal size

GW

1/2

Orifice

d0

6.0

Dimension code

.X.

0400

Height

H

103

Length

L1

12

Length

L2

17

Length

A1

51

Wrench size across flats

S1

19

Wrench size across flats

S2

19

Wrench size across flats

S3

22

Weight

ca. kg

0.39

Product Variants

Filter our product by specific attributes
Name Anschlussart Austritt Anschlussart Eintritt Anschlussdimension Austritt Anschlussdimension Eintritt Link to product
/
