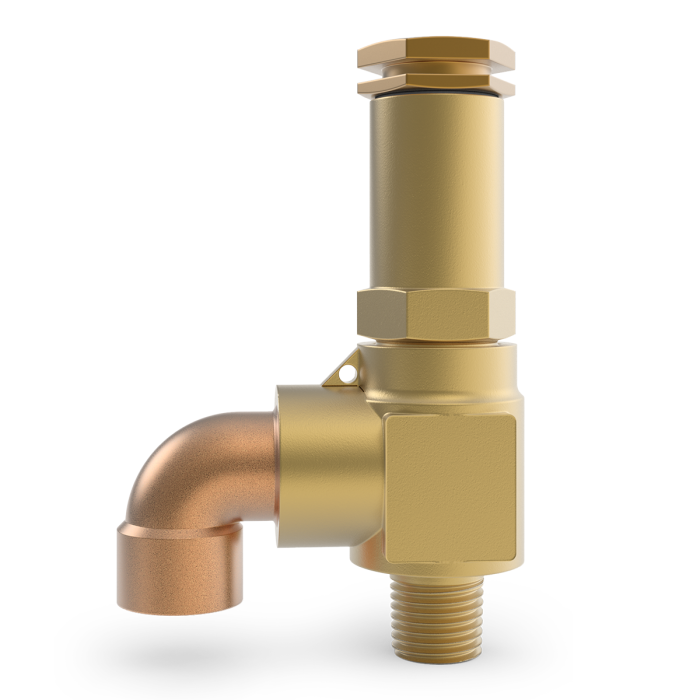

Safety Valve DN10(3/8") d0 6

Article-No.: 06001P0300.0800
Description
safety valve angle type, type tested
for cryogenic gases in TPED 2010/35/EU
for CO2- applications: minimum pressure 10bar, maximum pressure 40bar
with gastight cap
cleaned and degreased for oxygen services
all. working temperature -196°C till +65°C
bonnet CW614N brass closed without lifting device
inlet CW617N brass 3/8"BSPT male thread
outlet CC491K bronze with mounted elbow
disc PTFE/Electrocarbon 25%
orifice 6,0mm
installation position: tested for vertical installation with outlet
mounted elbow bent down

More Information
SKU 06001P0300.0800
Solution LNG
Solution Area Transport, Storage, Refueling, Processes
HEROSE Type Reference CR_06001
Type (Series) 06001
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 65.0 °C
Opening pressure difference 10%
body material CW617N
Connection dimension inlet 3/8''
Connection dimension outlet 12
Connection inlet male thread BSPT
Connection outlet socket end - elbow
Canada approval CRN 0C20613.5C
Pressure range BAR 5,00 - 40,00 bar
Pressure range KPA 500,00 - 4.000,00 kPa
Pressure range PSI 72,50 - 580,00 PSI
Disc seal K
Approval TPED 2010/35/EU
