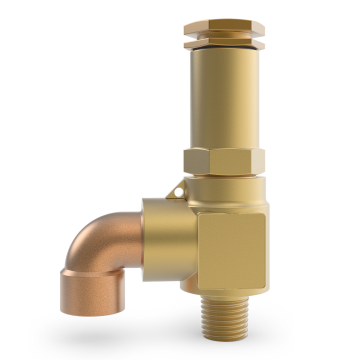

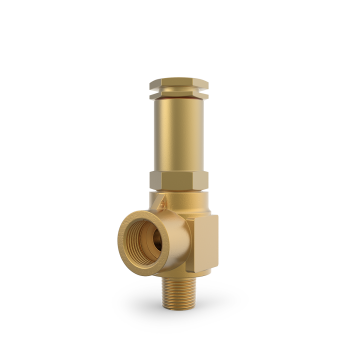

Type 06001

Datasheet ID: CR_06001
Field of application

Applications:

Provided as safety device for protection against thermal expansion in pipeworks and parts of facilities.

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +65°C / +149°F (338K), suitable for horizontal installation

Certificates
Transportable Pressure Equipment Directive (2010/35/EU)
Pressure Equipment Directive (2014/68/EU)
Gost Ukraine (Gost Ukraine)
License of Special Equipment (China) (TS)
Korean Gas Safety (KGS)
TÜV Verband (Approval mark number)
Transportable Pressure Equipment Regulation 2009 (TPER 2009)
Data sheets
More Information
Solution LNG
Solution Area Transport, Storage, Refueling, Processes
SKU CR_06001

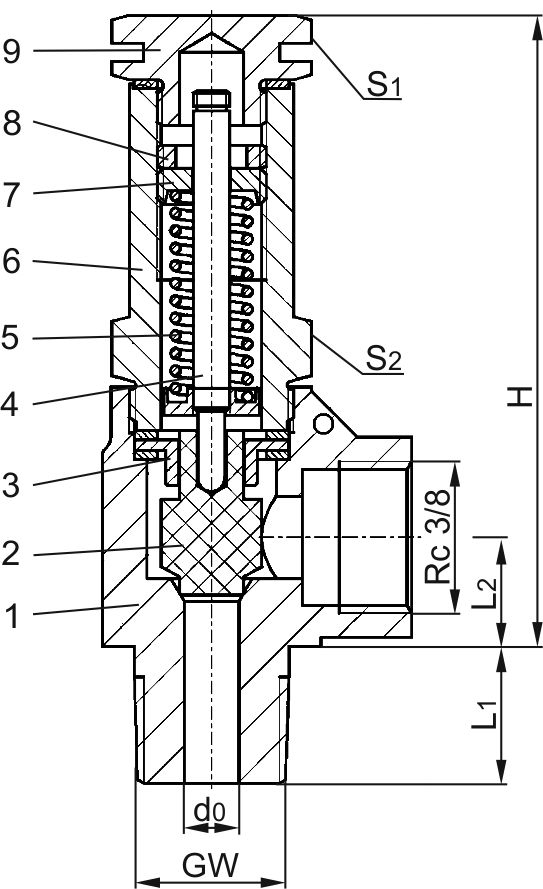

Materials

Materials

DIN EN

ASME/ASTM

1

Body

CW617N

EN12165 CW617N Code Case 1750

2

Disc

PTFE / Carbon filled (25%)

3

Guide plate

CW614N

EN12164 CW614N Code Case 1750

4

Stem

CW614N

EN12164 CW614N Code Case 1750

5

Spring

1.4571

A 313 Grade 316Ti

6

Bonnet

CW614N

EN12164 CW614N Code Case 1750

7

Spring clamp

CW614N

EN12164 CW614N Code Case 1750

8

Thread ring

CW614N

EN12164 CW614N Code Case 1750

9

Cap

CW614N

EN12164 CW614N Code Case 1750
Versions

Type 06001

Technical data

Nominal size

GW

1/4

3/8

1/2

Orifice

d0

6.0

6.0

6.0

Dimension code

.X.

0200

0300

0400

Set pressure range

bar

5.0-55.0

5.0-55.0

5.0-55.0

Height

H

70

70

70

Length

L1

13

15

17

Length

L2

13

13

13

Wrench size across flats

S1

19

19

19

Wrench size across flats

S2

19

19

19

Weight

ca. kg

0.18

0.195

0.21

Coefficient of discharge

αw

0.09

0.09

0.09
