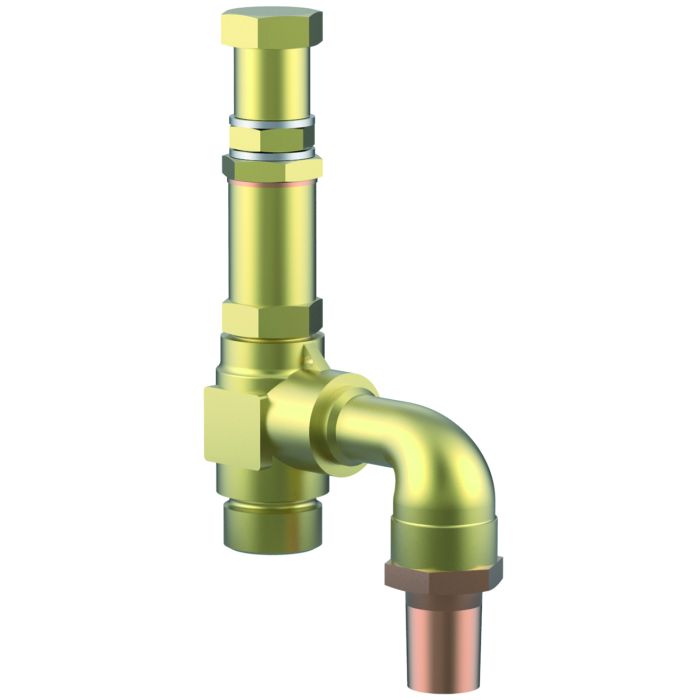

Safety Valve DN10(3/8") d0 6

Article-No.: 06001.0300.9050
Description
safety valve angle type, type tested
for vapours, gases and fluids
with gastight cap
cleaned and degreased for oxygen services
working temperature -196°C up to +65°C
bonnet CW614N brass closed without lifting device
inlet CW617N brass 3/8"BSPP male thread
outlet CC491K bronze with mounted elbow
disc PTFE/Electrocarbon 25%
orifice 6.0mm
installation position: -tested for vertical installation
with outlet mounted elbow
bent down
More Information
SKU 06001.0300.9050
Solution LNG
Solution Area Transport, Storage, Refueling, Processes
HEROSE Type Reference CR_06001_2
Type (Series) 06001
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 65.0 °C
Opening pressure difference 10%
body material CW617N
China approval TSF700D36-2029
Connection dimension inlet 3/8''
Connection dimension outlet 3/8''
Connection inlet male thread BSPP
Connection outlet G-f-thread (BSPP) - elbow
Canada approval CRN 0C20613.5C
Pressure range BAR 5,00 - 55,00 bar
Pressure range KPA 500,00 - 5.500,00 kPa
Pressure range PSI 72,50 - 797,50 PSI
Disc seal K
