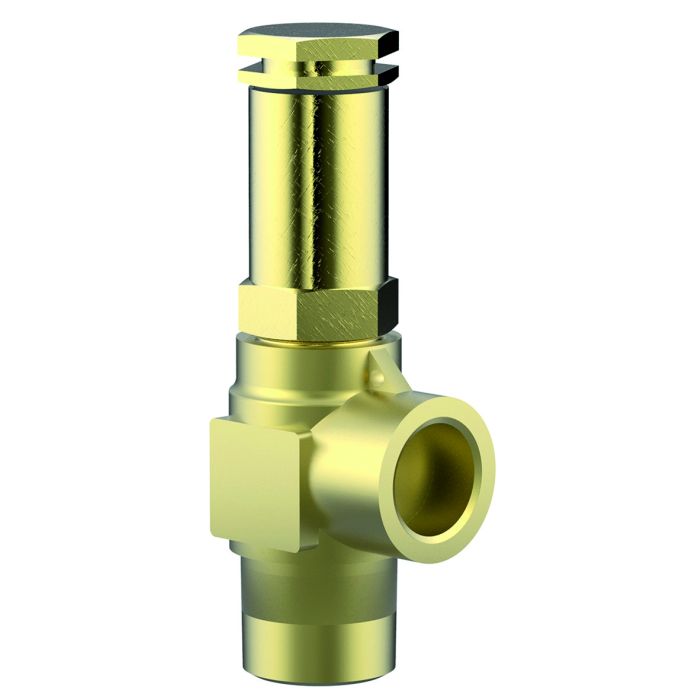

Safety Valve DN15(1/2") d0 6

Article-No.: 06001P0400.2800
Description
safety valve angle type, type tested
for cryogenic gases in TPED 2010/35/EU
for CO2- applications: minimum pressure 10bar, maximum pressure 40bar
for vapours, gases and fluids
with gastight cap
cleaned and degreased for oxygen services
working temperature -196°C up to +65°C
bonnet CW614N brass closed without lifting device
inlet CW617N brass 1/2"BSPP male thread
outlet CC491K bronze with mounted elbow
disc PTFE/Electrocarbon 25%
orifice 6.0mm
installation position: -tested for vertical installation

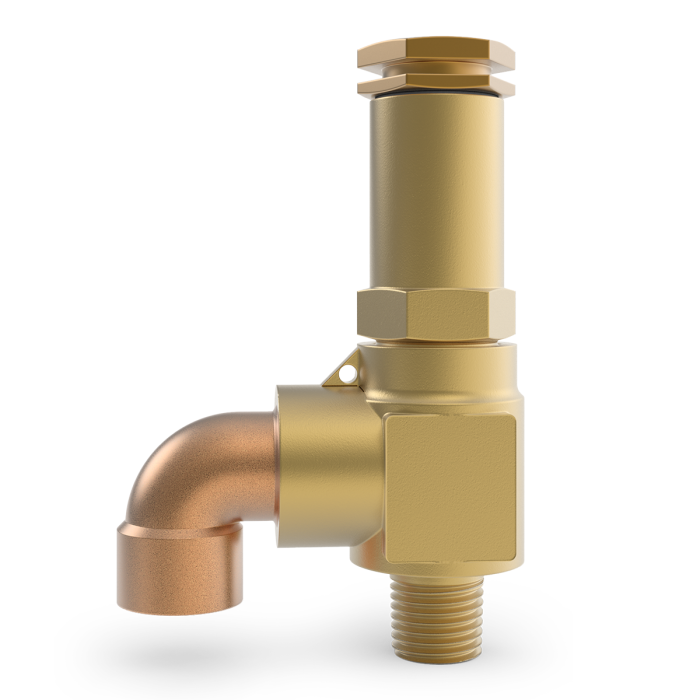

with mounted elbow 90° down
More Information
SKU 06001P0400.2800
HEROSE Type Reference CR_06001
Type (Series) 06001
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 65.0 °C
Opening pressure difference 10%
body material CW617N
Connection dimension inlet 1/2''
Connection dimension outlet 12
Connection inlet male thread BSPP
Connection outlet ROHRBOGEN
Canada approval CRN 0C20613.5C
Pressure range BAR 5,00 - 40,00 bar
Pressure range KPA 500,00 - 4.000,00 kPa
Pressure range PSI 72,50 - 580,00 PSI
