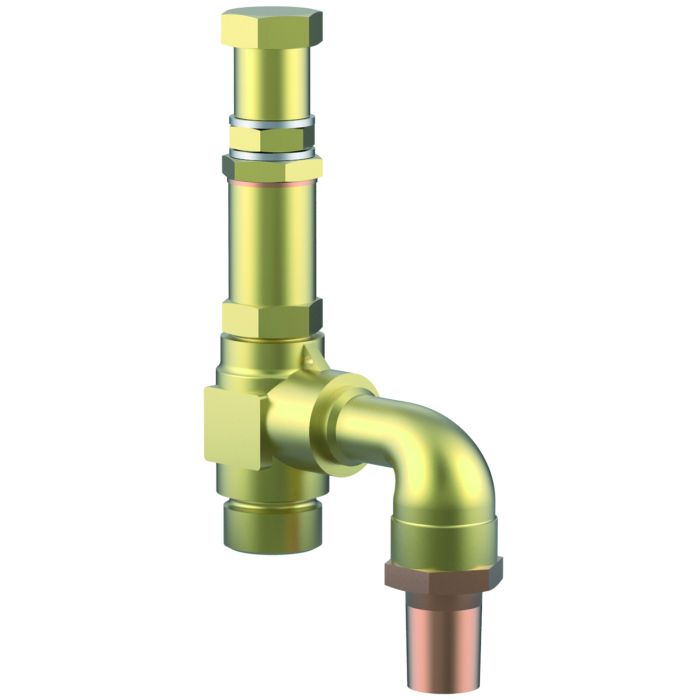

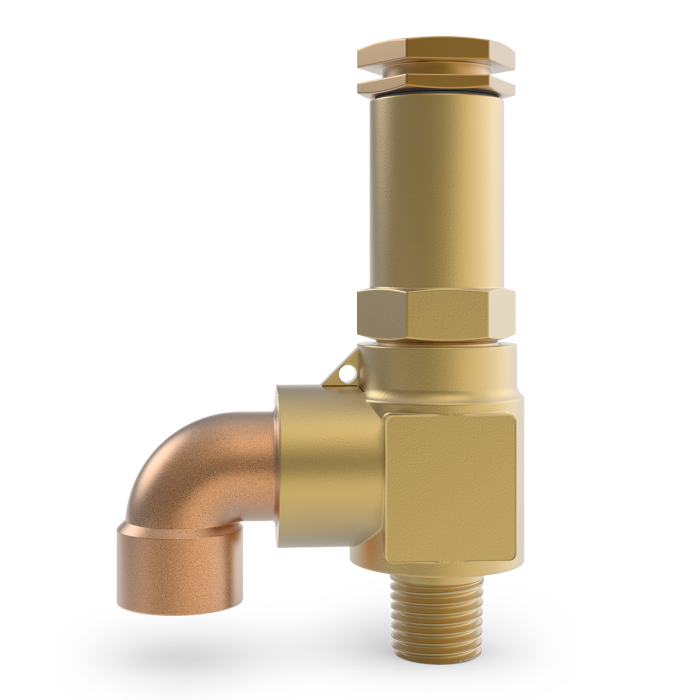

Safety Valve DN15(1/2") d0 6
The product shown in the picture may differ from the product sold.
Safety Valve DN15(1/2") d0 6
Article-No.: 06001.0400.0800
Price
POR
Description
safety valve angle type, type tested
for vapours, gases and fluids
with gastight cap
cleaned and degreased for oxygen services
working temperature -196°C up to +65°C
bonnet CW614N brass closed without lifting device
inlet CW617N brass 1/2"BSPT male thread
outlet CC491K bronze with mounted elbow
disc PTFE/Electrocarbon 25%
orifice 6.0mm
installation position: -tested for vertical installation
with outlet mounted elbow
bent down
for vapours, gases and fluids
with gastight cap
cleaned and degreased for oxygen services
working temperature -196°C up to +65°C
bonnet CW614N brass closed without lifting device
inlet CW617N brass 1/2"BSPT male thread
outlet CC491K bronze with mounted elbow
disc PTFE/Electrocarbon 25%
orifice 6.0mm
installation position: -tested for vertical installation
with outlet mounted elbow
bent down
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06001.0400.0800 |
|---|---|
| HEROSE Type Reference | CR_06001 |
| Type (Series) | 06001 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 65.0 °C |
| Opening pressure difference | 10% |
| body material | CW617N |
| China approval | TSF700D36-2025 |
| Connection dimension inlet | 1/2'' |
| Connection dimension outlet | 12 |
| Connection inlet | male thread BSPT |
| Connection outlet | ROHRBOGEN |
| Canada approval | CRN 0C20613.5C |
| Pressure range BAR | 5,00 - 55,00 bar |
| Pressure range KPA | 500,00 - 5.500,00 kPa |
| Pressure range PSI | 72,50 - 797,50 PSI |
Related Type
Datasheet ID: CR_06001_2
Type 06001
Datasheet ID: CR_06001_2
- Solution:
- LNG
- Solution Area:
- Transport, Storage, Refueling, Processes
