Ueberstroemv. Za G1/2 Rb/Schdpf.16-21bar

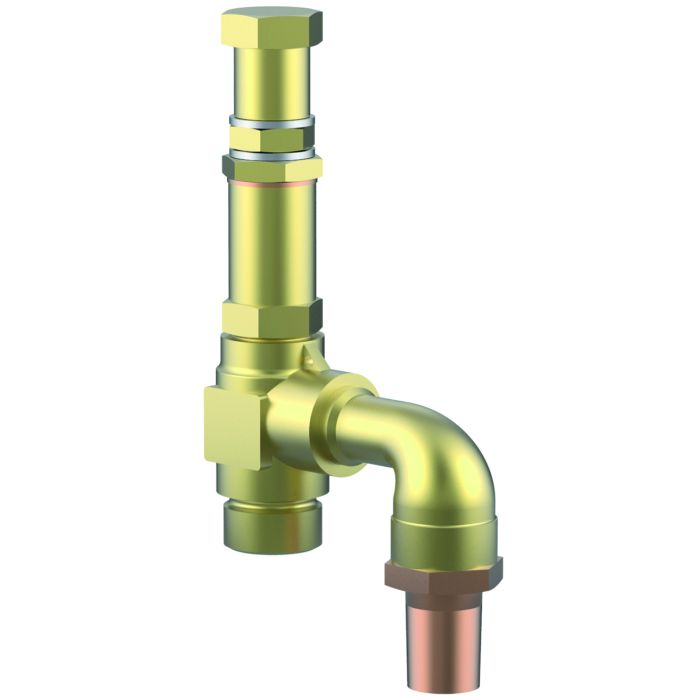

Click on the product image for a larger view.
Ueberstroemv. Za G1/2 Rb/Schdpf.16-21bar
Article-No.: 06001.0400.9002
Price
POR
Description
overflow valve without type tested
for vapours and gases
cleaned and degreased for oxygen services
working temperature -196°C up to +65°C
bonnet CW614N brass closed bonnet
inlet CW617N brass 1/2"BSPP male thread
outlet CC491K bronze 3/8"BSPT with mounted elbow and
,,,,,,,,,,,,,,,,silencer (CC483K/CuSn12)
disc PTFE/Electrocarbon 25%
orifice 6.0mm
pressure range 16.00bar up to 21.00bar
21.0bar 66 kg/h
with adjustment unit
Not to use as equipment with safety function acc.
to Pressure Equipment Directive 2014/68/EU (PED)
I M P O R T A N T!!!
Without CE - marking
for vapours and gases
cleaned and degreased for oxygen services
working temperature -196°C up to +65°C
bonnet CW614N brass closed bonnet
inlet CW617N brass 1/2"BSPP male thread
outlet CC491K bronze 3/8"BSPT with mounted elbow and
,,,,,,,,,,,,,,,,silencer (CC483K/CuSn12)
disc PTFE/Electrocarbon 25%
orifice 6.0mm
pressure range 16.00bar up to 21.00bar
21.0bar 66 kg/h
with adjustment unit
Not to use as equipment with safety function acc.
to Pressure Equipment Directive 2014/68/EU (PED)
I M P O R T A N T!!!
Without CE - marking
Delivery Time:
4 week(s)
More Information
| SKU | 06001.0400.9002 |
|---|---|
| Delivery Time | 4 |
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_06001 |
| Type (Series) | 06001 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 65.0 °C |
| body material | CW617N |
| Connection dimension inlet | 1/2'' |
| Connection dimension outlet | 3/8'' |
| Connection inlet | male thread BSPP |
| Connection outlet | BSPT female thread |
| Pressure range BAR | 16,00 - 21,00 bar |
| Pressure range KPA | 1.600,00 - 2.100,00 kPa |
| Pressure range PSI | 232,00 - 304,50 PSI |
