Safety Valve DN15(1/2") d0 7

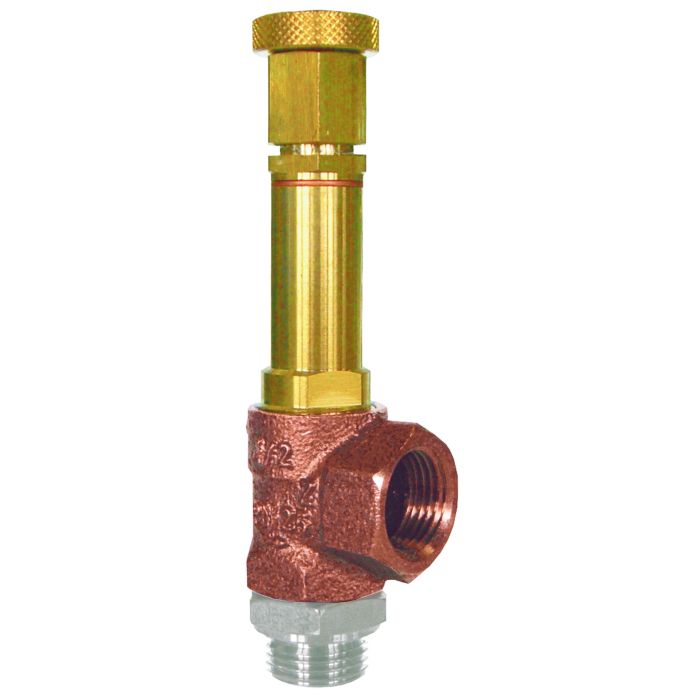

The product shown in the picture may differ from the product sold.
Safety Valve DN15(1/2") d0 7
Article-No.: 50051.0004.0000
Price
POR
Description
safety valve, angle type, with LR-Approval
for nontoxic vapours, gases and fluids
working temperature -10°C up to +160°C
bonnet CW614N brass with lifting device
inlet 1.4301 1/2"BSPP male thread
outlet CC491K 1/2"BSPP female thread
disc 1.4541
orifice 7.0mm
spring 1.4571
for nontoxic vapours, gases and fluids
working temperature -10°C up to +160°C
bonnet CW614N brass with lifting device
inlet 1.4301 1/2"BSPP male thread
outlet CC491K 1/2"BSPP female thread
disc 1.4541
orifice 7.0mm
spring 1.4571
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 50051.0004.0000 |
|---|---|
| Solution | Air Gases |
| Solution Area | Storage, Processes |
| HEROSE Type Reference | IN_50051_0004 |
| Type (Series) | 50051 |
| Maximum allowable temperature | -10.0 °C |
| Maximum allowable temperature | 160.0 °C |
| Opening pressure difference | 10% |
| body material | CC491K |
| Connection dimension inlet | 1/2'' |
| Connection dimension outlet | 1/2'' |
| Connection inlet | male thread BSPP |
| Connection outlet | female thread BSPP |
| Pressure range BAR | 6,00 - 15,00 bar |
| Pressure range KPA | 600,00 - 1.500,00 kPa |
| Pressure range PSI | 87,00 - 217,50 PSI |
Related Type
Datasheet ID: IN_50051_0004
Type 50051.0004
Datasheet ID: IN_50051_0004
- Solution:
- Air Gases
- Solution Area:
- Storage, Processes
