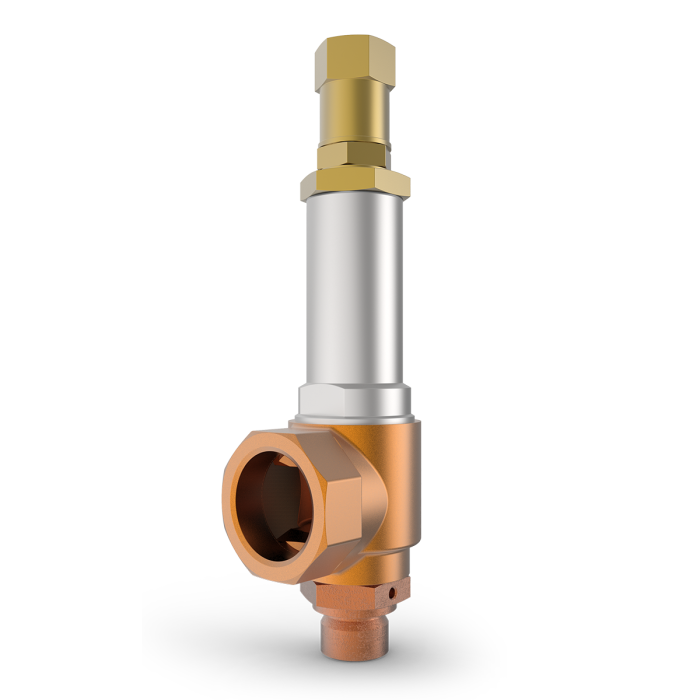

Overflow Valve DN15(1/2") d0 10,5

Article-No.: 06386.1004.9002
Description
Overflow Valve angle type,not type tested
for cryogenic gases
cleaned and degreased for oxygen services
with gastight cap
working temperature -196°C up to +185°C
bonnet 1.4308/CF8 st.st.
inlet 1.4301 st.st. 1/2"BSPP male thread
outlet CC491K bronze 1"BSPP female thread
disc 1.4404 st.st. metal to metal seated
orifice 10.5mm
adjustable from 7.0 - 17.0bar
The above mentioned overflow valve is designed acc. to
PED2014/68/EC article 4.3 and can not be used safety
accessory as defind by PED2014/68/EU (article 1).
More Information
SKU 06386.1004.9002
Solution H2, LNG
Solution Area Manufacturing, Transport, Storage, Application, Refueling, Processes
HEROSE Type Reference CR_06386_2
Type (Series) 06386
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 185.0 °C
body material CC491K
Connection dimension inlet 1/2''
Connection dimension outlet 1''
Connection inlet male thread BSPP
Connection outlet female thread BSPP
Pressure range BAR 7,00 - 17,00 bar
Pressure range KPA 700,00 - 1.700,00 kPa
Pressure range PSI 101,50 - 246,50 PSI
Disc seal M
