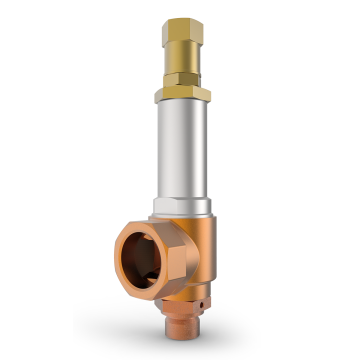

Type 06386

Datasheet ID: CR_06386_2
Field of application

Applications:

Provided as overflow valve for protection against excessive pressure in pipe systems and pressure

vessels, which are not subject to approval.

Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K)

Certificates
EAC - Eurasian Conformity (010/2011)
EAC - Eurasian Conformity (032/2013)
Pressure Equipment Directive (2014/68/EU)
ABS (Class Rules)
20-2042586-PDA
Transportable Pressure Equipment Directive (2010/35/EU)
ASME Code (ASME Code Section VIII)
Canadian Registration Number (CRN)
Gost Ukraine (Gost Ukraine)
License of Special Equipment (China) (TS)
ClassNK (Class Rules)
TÜV Verband (Approval mark number)
BV (Class Rules)
Transportable Pressure Equipment Regulation 2009 (TPER 2009)
Operating Instructions
More Information
Solution H2, LNG
Solution Area Manufacturing, Transport, Storage, Application, Refueling, Processes
SKU CR_06386_2
Materials

Materials

DIN EN

ASTM

1

Outlet body

CC491K

B 62 UNS C83600

2

Inlet body

1.4301

A 276 Grade 304

3

Disc

1.4541

A 276 Grade 321

4

Guide plate

CW453K

B 103 UNS C52100

5

Stem

CW453K

B 103 UNS C52100

6

Spring

1.4571

A 313 Grade 316Ti

7

Bonnet

1.4305

A 314 Grade 303

8

Spring clamp

CW614N

B 283 UNS C38500

9

Adjusting screw

CW614N

B 283 UNS C38500

10

Plug

CW614N

B 283 UNS C38500

11

Nut

CW614N

B 283 UNS C38500

12

Closing cap

CW614N

B 283 UNS C38500
Versions

Type 06386

Technical data

Nominal size

GW

1/2

3/4

Orifice

d0

10.5

10.5

Dimension code

.X.

1004

1006

Outlet

GA

1

1

Height

H

171

171

Length

L1

36

36

Length

L2

34

34

Length

A1

14

16

Wrench size across flats

S1

30

32

Wrench size across flats

S2

41

41

Wrench size across flats

S3

30

30

Wrench size across flats

S4

22

22

Weight

ca. kg

0.78

0.81
