Overflow Valve DN15(1/2") d0 10,5

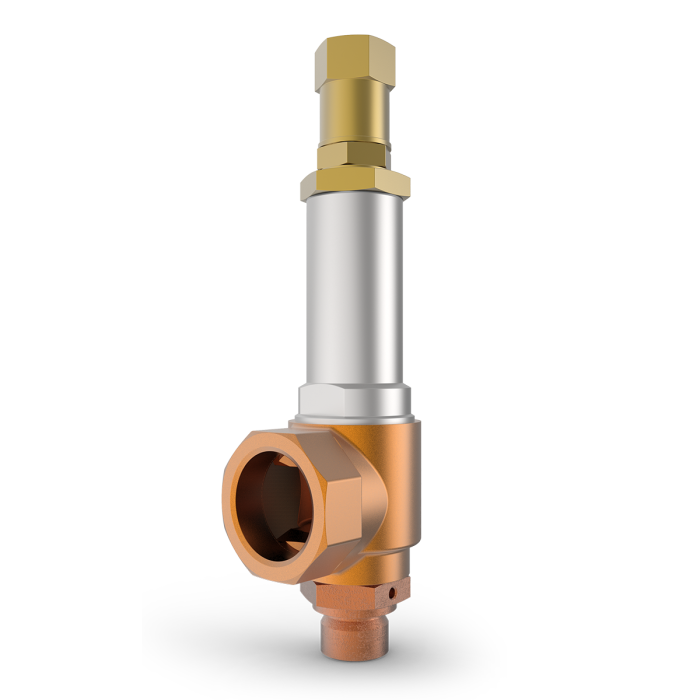

The product shown in the picture may differ from the product sold.
Overflow Valve DN15(1/2") d0 10,5
Article-No.: 06386.1004.9007
Price
POR
Description
Overflow Valve angle type,not type tested
for cryogenic gases
cleaned and degreased for oxygen services
with gastight cap
working temperature -196°C up to +185°C
bonnet 1.4308/CF8 st.st.
inlet 1.4301 st.st. 1/2"BSPP male thread
outlet CC491K bronze 1"BSPP female thread
disc 1.4404 st.st. metal to metal seated
orifice 10.5mm
adjustable from 21.0 - 28.0bar
"not as aparatus with
safety belt function usable"
for cryogenic gases
cleaned and degreased for oxygen services
with gastight cap
working temperature -196°C up to +185°C
bonnet 1.4308/CF8 st.st.
inlet 1.4301 st.st. 1/2"BSPP male thread
outlet CC491K bronze 1"BSPP female thread
disc 1.4404 st.st. metal to metal seated
orifice 10.5mm
adjustable from 21.0 - 28.0bar
"not as aparatus with
safety belt function usable"
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06386.1004.9007 |
|---|---|
| Solution | H2, LNG |
| Solution Area | Manufacturing, Transport, Storage, Application, Refueling, Processes |
| HEROSE Type Reference | CR_06386_2 |
| Type (Series) | 06386 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 185.0 °C |
| body material | CC491K |
| Connection dimension inlet | 1/2'' |
| Connection dimension outlet | 1'' |
| Connection inlet | male thread BSPP |
| Connection outlet | female thread BSPP |
| Pressure range BAR | 21,00 - 28,00 bar |
| Pressure range KPA | 2.100,00 - 2.800,00 kPa |
| Pressure range PSI | 304,50 - 406,00 PSI |
| Disc seal | M |
