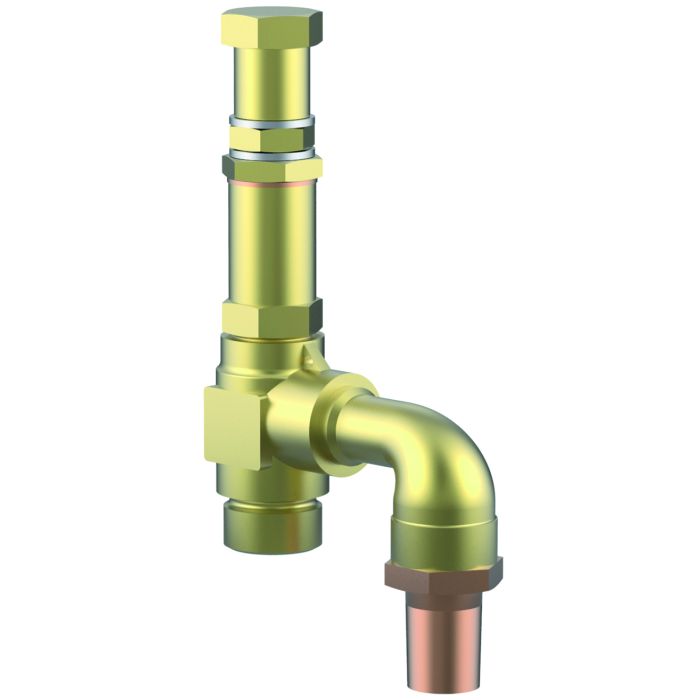

Ueberstroemv. Za G1/2 Rb/Schdpf.11-16bar
Article-No.: 06001.0400.9001
Price
POR
Description
overflow valve without type tested
for vapours and gases
cleaned and degreased for oxygen services
working temperature -196°C up to +65°C
bonnet CW614N brass closed bonnet
inlet CW610N brass 1/2"BSPP male thread
outlet CC491K bronze 3/8"BSPT with mounted elbow and
,,,,,,,,,,,,,,,,silencer (CC483K/CuSn12)
disc PTFE/Electrocarbon 25%
orifice 6.0mm
pressure range 11.00bar up to 16.00bar
16.0bar 51 kg/h
with adjustment unit
Not to use as equipment with safety function acc.
to Pressure Equipment Directive 2014/68/EU (PED)
I M P O R T A N T!!!
Without CE - marking
for vapours and gases
cleaned and degreased for oxygen services
working temperature -196°C up to +65°C
bonnet CW614N brass closed bonnet
inlet CW610N brass 1/2"BSPP male thread
outlet CC491K bronze 3/8"BSPT with mounted elbow and
,,,,,,,,,,,,,,,,silencer (CC483K/CuSn12)
disc PTFE/Electrocarbon 25%
orifice 6.0mm
pressure range 11.00bar up to 16.00bar
16.0bar 51 kg/h
with adjustment unit
Not to use as equipment with safety function acc.
to Pressure Equipment Directive 2014/68/EU (PED)
I M P O R T A N T!!!
Without CE - marking
Delivery Time:
4 week(s)
More Information
SKU | 06001.0400.9001 |
---|---|
Delivery Time | 4 |
Solution | LNG, Air Gases |
Solution Area | Transport, Storage, Refueling, Processes |
HEROSE Type Reference | CR_06001 |
Type (Series) | 06001 |
Maximum allowable temperature | -196.0 °C |
Maximum allowable temperature | 65.0 °C |
body material | CW610N |
Connection dimension inlet | 1/2'' |
Connection dimension outlet | 3/8'' |
Connection inlet | male thread BSPP |
Connection outlet | BSPT female thread |
Pressure range BAR | 11,01 - 16,00 bar |
Pressure range KPA | 1.101,00 - 1.600,00 kPa |
Pressure range PSI | 159,51 - 232,00 PSI |
