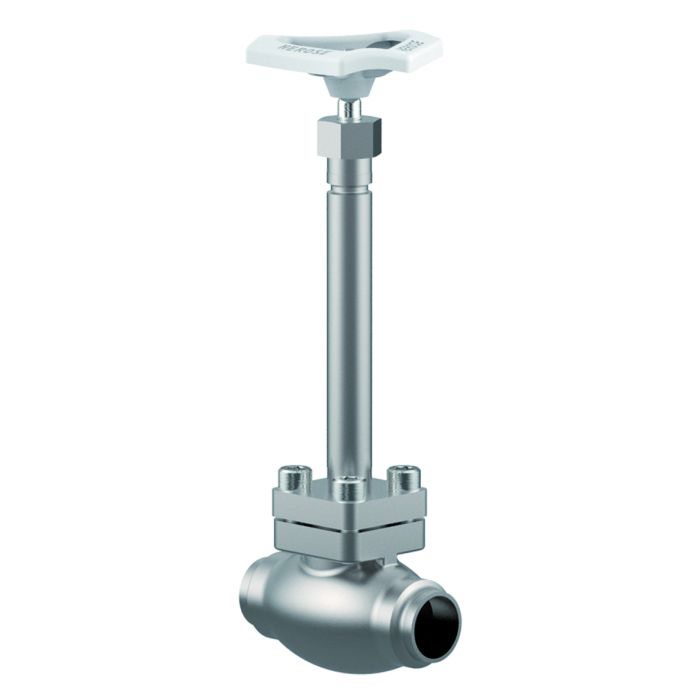

Globe Valve DN40(1 1/2") H270

Article-No.: 01341.4048.0014
Description
Cryogenic globe valve DN40 PN 50
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308
bonnet 1.4308
gland packing Graphit/PTFE
Connection socket end
OD48.26mm
face to face 130mm
Kvs=22,6m³/h Cv=26,3gal/min

More Information
SKU 01341.4048.0014
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
HEROSE Type Reference CR_01341_1
Type (Series) 01341
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 40
Nominal pressure PN 50
max. lift 15.0
Kvs-value 22.6 MQH
body material 1.4308
CV-Value 26,3 gal/min
China approval TS2700G39-2029
installation height 270.0 MMT
Connection dimension inlet 48,3 / 1.1/2''
Connection dimension outlet 48,3 / 1.1/2''
Connection inlet socket weld connection
Connection outlet socket weld
Canada approval CRN 0C22964.5C
Handwheelmaterial and color aluminium, white
Taper function lockable function
Bonnet extension with bonnet extension
Valve operation manual operation
Material seat seal PTFE/carbon
