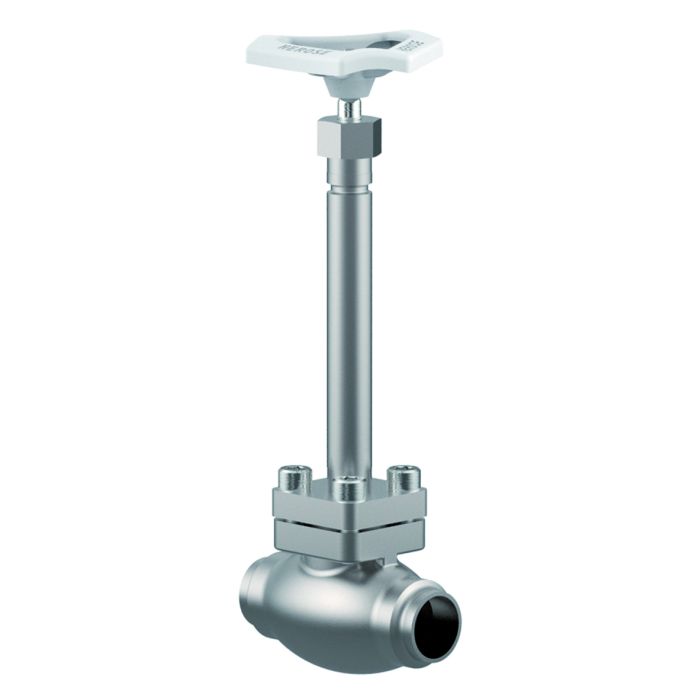

Type 01341 - Globe Valve

Datasheet ID: CR_01341_1
Field of application

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Certificates
EAC - Eurasian Conformity (032/2013)
EAC - Eurasian Conformity (010/2011)
ABS (Class Rules)
20-2042586-PDA
Transportable Pressure Equipment Directive (2010/35/EU)
Association of American Railroads (AAR)
type-examination for LNG (DIN EN 12567)
Gost Ukraine (Gost Ukraine)
ClassNK (Class Rules)
License of Special Equipment (China) (TS)
DNV (Class Rules)
Pressure Equipment Directive (2014/68/EU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
BV (Class Rules)
RINA (Class Rules)
CCS (Class Rules)
Operating Instructions
More Information
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01341_1
Materials

Materials

DIN EN

ASTM

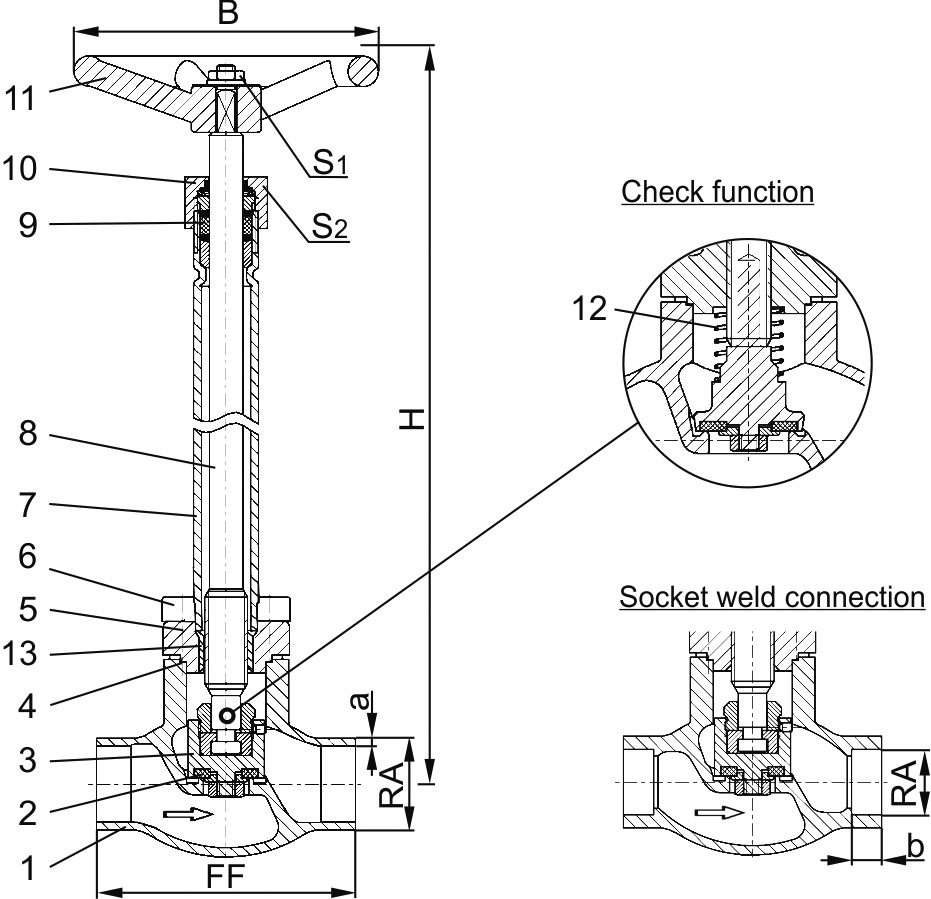

1

Body

1.4308

A 351 CF8

2

Valve seal up to DN50

PTFE / Carbon filled (25%)

2a

Valve seal from DN65

PTFE

3

Disc

1.4301

A 276 Grade 304

4

Bonnet gasket

PTFE

5

Headpiece

1.4301 /

1.4308

A 276 Grade 304 /

A 351 CF8

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.4305

A 276 Grade 303

11

Handwheel

Aluminium alloy

12

Spring

1.4310

A 313 Grade 301

13

Bush

CW452K

B 159 UNS C51900
Versions

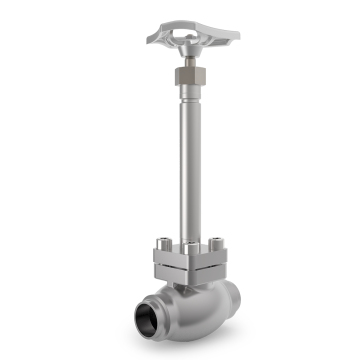

Type 01341 - Standard design

Technical data

Nominal size

DN

10

15

15

20

25

32

40

40

50

65

80

100

150

Dimension code

.X.

1012

1517

1521

2026

2533

3238

4042

4048

5060

657x

8088

0114

0168

Face-to-face dimension

FF

70

85

85

100

115

115

130

130

155

205

245

280

400

Height

H

270mm or 370mm

300/370

320/370

370

420

Outside pipe-Ø ISO 1127

RA

12.0

17.2

21.3

26.9

33.7

38.0

42.4

48.3

60.3

76.1

88.9

114.3

168.3

Wall thickness pipe ISO 1127

a

1.0

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.9

3.2

6.0

7.1

Outside pipe-Ø ASTM A312

RA

13.72

17.15

21.34

26.67

33.40

-

42.16

48.26

60.33

73.03

88.90

114.3

168.3

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

6

10

10

13

13

-

13

13

16

16

16

20

20

Handwheel-Ø

B

100

100

100

100

100

125

125

125

125

200

250

315

360

Wrench size across flats

S1

7

7

7

7

7

10

10

10

10

10

10

12

15

Wrench size across flats

S2

30

30

30

30

30

36

36

36

36

36

36

41

41

Weight

ca. kg

1.4

1.65

1.7

2.1

2.4

3.3

4.7

4.7

7.2

12.7

17.0

24.5

54.0

Kvs-Value

m³/h

1.6

3.8

4.3

6.7

11.5

14.0

20.6

22.6

37.1

71.1

104.0

170.0

350.0

Cv-Value

gal/min

1.9

4.4

5.0

7.8

13.4

16.2

23.9

26.3

43.2

82.9

121.3

198.3

408.4

Product Variants

Filter our product by specific attributes
Name Anschlussart Austritt Anschlussart Eintritt Anschlussdimension Austritt Anschlussdimension Eintritt Bauhöhe (H) Cv-Wert Nennweite Link to product
/
