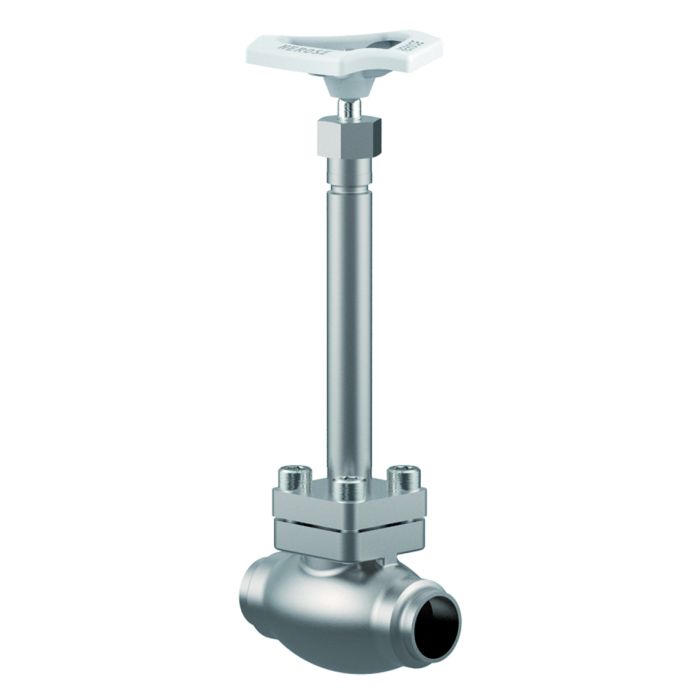

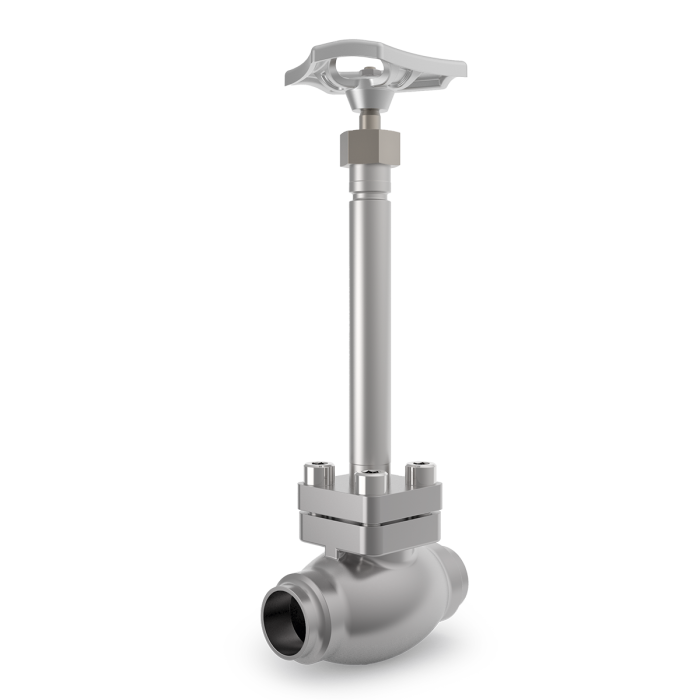

Globe Valve DN25(1") H270

Article-No.: 01341.2533.0011
Description
Cryogenic globe valve DN25 PN50
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet 1.4308 st.st.
gland packing graphit/PTFE
insert bush CW452K bronze
connection butt weld ø33.7 x 2.0mm
face to face 115mm
Kvs=11.5m³/h Cv=13.4gal/min
More Information
SKU 01341.2533.0011
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
HEROSE Type Reference CR_01341_1
Type (Series) 01341
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 25
Nominal pressure PN 50
max. lift 12.0
Kvs-value 11.5 MQH
body material 1.4308
CV-Value 13,4 gal/min
China approval TS2700G39-2029
installation height 270.0 MMT
Connection dimension inlet 33,7 x 2,0
Connection dimension outlet 33,7 X 2,0
Connection inlet welding end
Connection outlet welding end
Canada approval CRN 0C22964.5C
Handwheelmaterial and color aluminium, white
Taper function lockable function
Bonnet extension with bonnet extension
Valve operation manual operation
Material seat seal PTFE/carbon
