Globe Valve DN40(1 1/2") H370

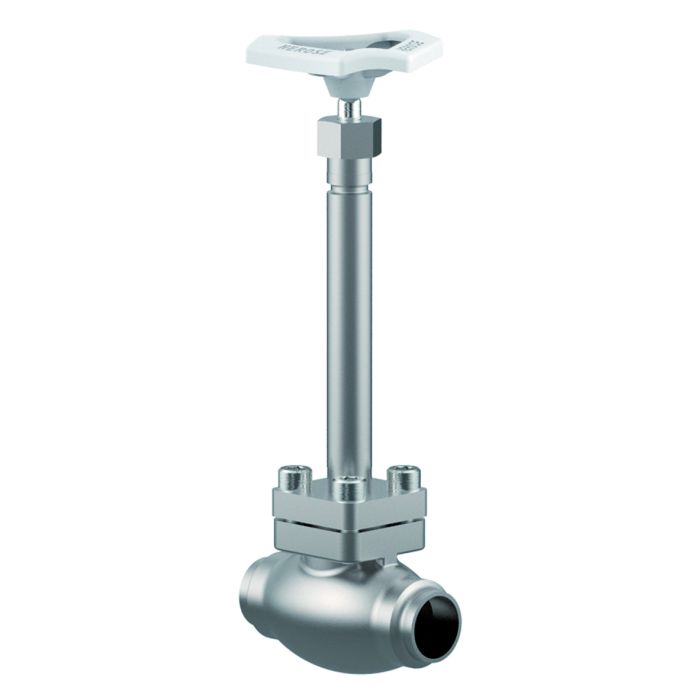

The product shown in the picture may differ from the product sold.
Globe Valve DN40(1 1/2") H370
Article-No.: 01341.4042.0024
Price
POR
Description
Cryogenic globe valve DN40 PN 50
cleaned and degreased for oxygen service
with bonnet extension H=370mm
working temperature -196°C up to +120°C
body 1.4308
bonnet 1.4308
gland packing Graphit/PTFE
Connection socket end
OD42.40mm
face to face 130mm
Kvs=20,6m³/h Cv=26,3gal/min
cleaned and degreased for oxygen service
with bonnet extension H=370mm
working temperature -196°C up to +120°C
body 1.4308
bonnet 1.4308
gland packing Graphit/PTFE
Connection socket end
OD42.40mm
face to face 130mm
Kvs=20,6m³/h Cv=26,3gal/min
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 01341.4042.0024 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_01341_1 |
| Type (Series) | 01341 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 40 |
| Nominal pressure | PN 50 |
| max. lift | 15.0 |
| Kvs-value | 20.6 MQH |
| body material | 1.4308 |
| CV-Value | 23.9 gal/min |
| China approval | TS2700G39-2025 |
| installation height | 370.0 MMT |
| Connection dimension inlet | 42,4 / 1.1/4'' |
| Connection dimension outlet | 42,4 / 1.1/4'' |
| Connection inlet | socket weld connection |
| Connection outlet | socket weld |
| Canada approval | CRN 0C22964.5C |
