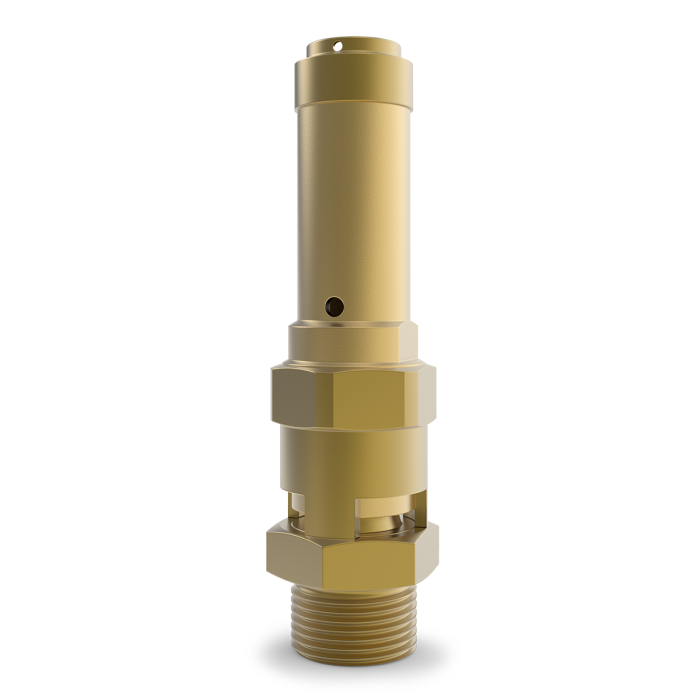

Safety Valve DN20(3/4") d0 15
Click on the product image for a larger view.
Safety Valve DN20(3/4") d0 15
Article-No.: 06217.0600.0000
Price
POR
Description
Safety Valve, type tested
for air and similar gases
working temperature -40°C up to +200°C
bonnet CW614N brass open with lifting device
inlet CW617N brass 3/4"BSPP male thread
outlet CW617N brass with discharge holes
disc FPM (Viton)
orifice 15.0mm
spring 1.1200 st. zinc plated
threaded end 16.0mm
for air and similar gases
working temperature -40°C up to +200°C
bonnet CW614N brass open with lifting device
inlet CW617N brass 3/4"BSPP male thread
outlet CW617N brass with discharge holes
disc FPM (Viton)
orifice 15.0mm
spring 1.1200 st. zinc plated
threaded end 16.0mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06217.0600.0000 |
|---|---|
| Solution | Air Gases, Industry |
| Solution Area | Storage, Processes, Compressed Air |
| HEROSE Type Reference | IN_06216_06217 |
| Type (Series) | 06217 |
| Maximum allowable temperature | -40.0 °C |
| Maximum allowable temperature | 200.0 °C |
| Opening pressure difference | 10% |
| body material | CW617N |
| China approval | TSF700D36-2025 |
| Connection dimension inlet | 3/4'' |
| Connection inlet | male thread BSPP |
| Canada approval | CRN 0G7343.5C |
| Pressure range BAR | 0,20 - 20,00 bar |
| Pressure range KPA | 20,00 - 2.000,00 kPa |
| Pressure range PSI | 2,90 - 290,00 PSI |
Related Type
Datasheet ID: IN_06216_06217
