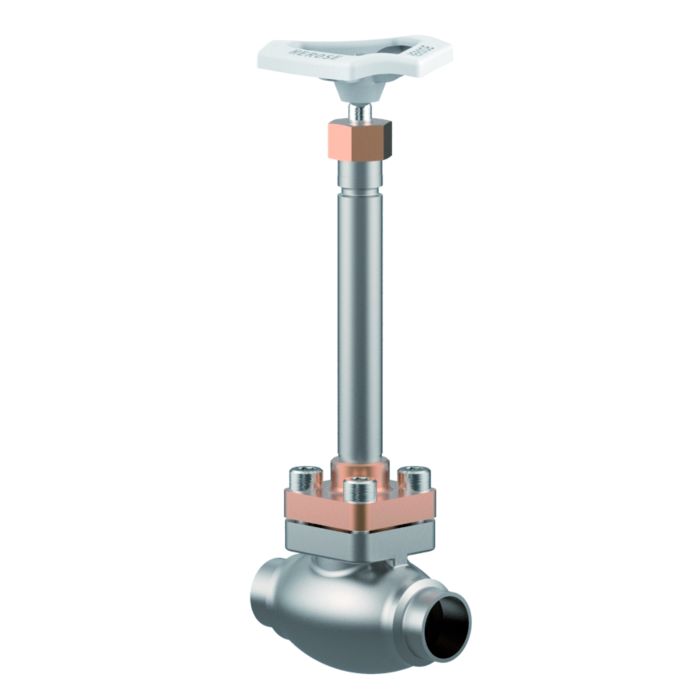

Globe Valve DN10(3/8") H270

Article-No.: 01321.1012.0014
Description
Cryogenic globe valve DN10 PN 50
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308
bonnet CC493K
gland packing Graphit/PTFE
Connection socket end
OD 12.70 mm
face to face 70mm
Kvs=1,6m³/h Cv=1,9gal/min
More Information
SKU 01321.1012.0014
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
HEROSE Type Reference CR_01321
Type (Series) 01321
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 10
Nominal pressure PN 50
max. lift 11.0
Kvs-value 1.6 MQH
body material 1.4308
CV-Value 1,9 gal/min
China approval TS2700G39-2029
installation height 270.0 MMT
Connection dimension inlet 12,7
Connection dimension outlet 12,7
Connection inlet socket weld connection
Connection outlet socket weld
Canada approval CRN 0C22964.5C
Handwheelmaterial and color aluminium, white
Taper function lockable function
Bonnet extension with bonnet extension
Valve operation manual operation
Material seat seal PTFE/carbon
