Globe Valve DN15(1/2") H270

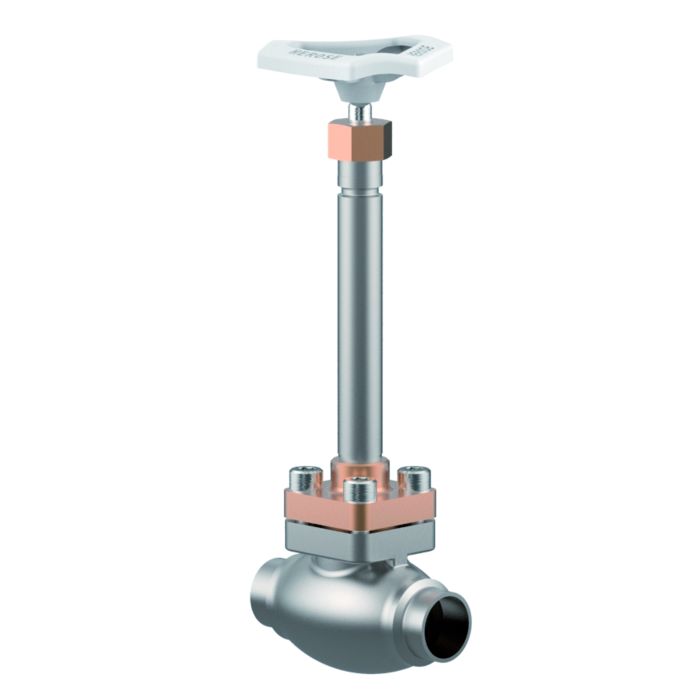

The product shown in the picture may differ from the product sold.
Globe Valve DN15(1/2") H270
Article-No.: 01321.1518.0214
Price
POR
Description
Cryogenic globe valve DN15 PN 50
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308
bonnet CC493K
gland packing Graphit/PTFE
Connection socket end
OD18.00mm
face to face 85mm
Kvs=3,8m³/h Cv=4,4gal/min
without handwheel
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308
bonnet CC493K
gland packing Graphit/PTFE
Connection socket end
OD18.00mm
face to face 85mm
Kvs=3,8m³/h Cv=4,4gal/min
without handwheel
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 01321.1518.0214 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_01321 |
| Type (Series) | 01321 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 15 |
| Nominal pressure | PN 50 |
| max. lift | 12.0 |
| Kvs-value | 3.8 MQH |
| body material | 1.4308 |
| CV-Value | 4,4 gal/min |
| China approval | TS2700G39-2025 |
| installation height | 270.0 MMT |
| Connection dimension inlet | 18 |
| Connection dimension outlet | 18 |
| Connection inlet | socket weld connection |
| Connection outlet | socket weld |
| Canada approval | CRN 0C22964.5C |
Related Type
Datasheet ID: CR_01321
Type 01321 - Globe Valve
Datasheet ID: CR_01321
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
