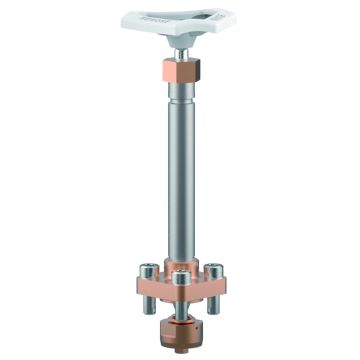

Globe Valve DN25(1") H270

Article-No.: 01321.2528.5011
Description
globe check valve DN25 PN50
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
connection butt weld for pipe ø28.0mm x 1.6mm
face to face 115mm
Kvs=11.5m³/h Cv=13.4gal/min
with spring
with return cone
More Information
SKU 01321.2528.5011
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
HEROSE Type Reference CR_01321
Type (Series) 01321
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 25
Nominal pressure PN 50
max. lift 12.0
Kvs-value 11.5 MQH
body material 1.4308
CV-Value 13,4 gal/min
China approval TS2700G39-2029
installation height 270.0 MMT
Connection dimension inlet 28,0 x 1,5
Connection dimension outlet 28,0 X 1,5
Connection inlet welding end
Connection outlet welding end
Canada approval CRN 0C22964.5C
Handwheelmaterial and color aluminium, white
Taper function lockable check valve function
Bonnet extension with bonnet extension
Valve operation manual operation
Material seat seal PTFE/carbon
