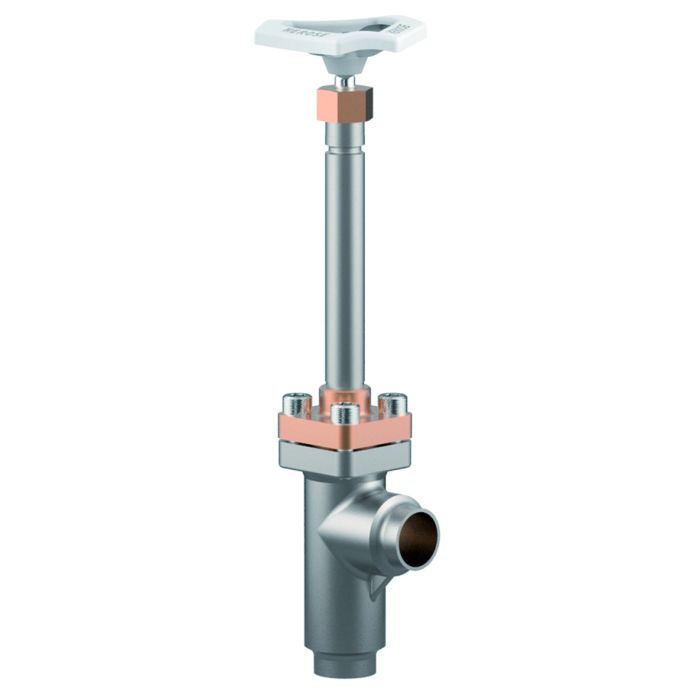

Globe Valve DN25(1") H270

Article-No.: 01322.2533.0014
Description
Cryogenic globe valve angle type DN25 PN50
cleaned and degreased for oxygen service
with bonnet extension H=270mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
connection socket weld ODø33.4mm
face to face 55mm
More Information
SKU 01322.2533.0014
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
HEROSE Type Reference CR_01322
Type (Series) 01322
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 25
Nominal pressure PN 50
max. lift 15.0
Kvs-value 17.2 MQH
body material 1.4308
CV-Value 20,0 gal/min
China approval TS2700G39-2029
installation height 270.0 MMT
Connection dimension inlet 33,7 / 1''
Connection dimension outlet 33,7 / 1''
Connection inlet socket weld connection
Connection outlet socket weld
Handwheelmaterial and color aluminium, white
Taper function lockable function
Bonnet extension with bonnet extension
Valve operation manual operation
Material seat seal PTFE/carbon
