Globe Valve DN40(1 1/2") H370

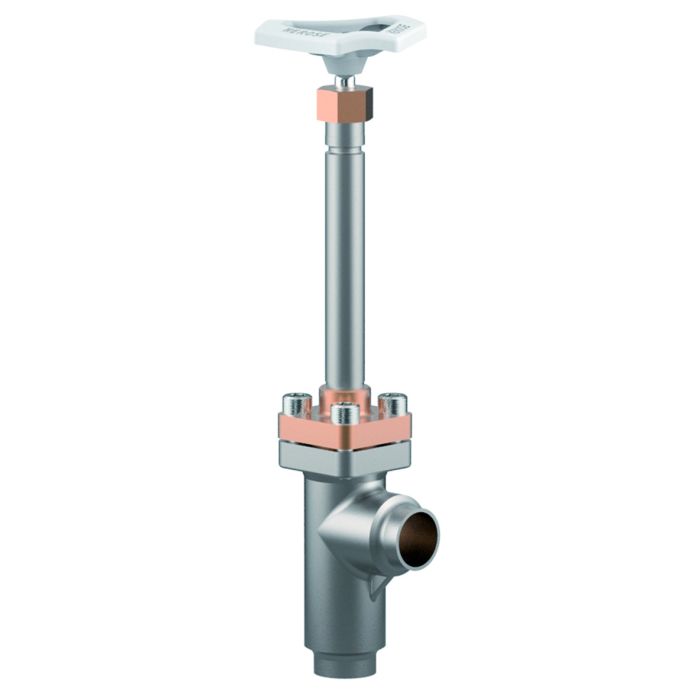

The product shown in the picture may differ from the product sold.
Globe Valve DN40(1 1/2") H370
Article-No.: 01322.4048.0024
Price
POR
Description
Cryogenic globe valve angle type DN40 PN50
cleaned and degreased for oxygen service
with bonnet extension H=370mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
connection socket weld ODø48.3mm
face to face 58mm
cleaned and degreased for oxygen service
with bonnet extension H=370mm
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet CC493K bronze
gland packing graphit/PTFE
connection socket weld ODø48.3mm
face to face 58mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 01322.4048.0024 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_01322 |
| Type (Series) | 01322 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 40 |
| Nominal pressure | PN 50 |
| max. lift | 30.0 |
| Kvs-value | 35.0 MQH |
| body material | 1.4308 |
| CV-Value | 40,7 gal/min |
| China approval | TS2700G39-2029 |
| installation height | 370.0 MMT |
| Connection dimension inlet | 48,3 / 1.1/2'' |
| Connection dimension outlet | 48,3 / 1.1/2'' |
| Connection inlet | socket weld connection |
| Connection outlet | socket weld |
| Disc seal | PTFE/Kohle |
| Handwheelmaterial and color | Aluminium, weiß |
| Taper function | absperrbare Funktion |
Related Type
Datasheet ID: CR_01322
Type 01322 - Globe Valve Angle Type
Datasheet ID: CR_01322
