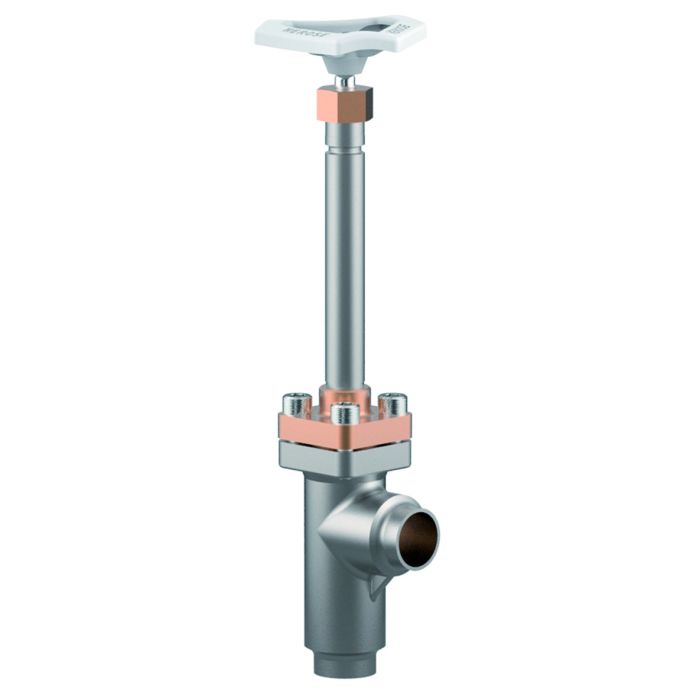

Globe Valve DN32(1 1/4") H270
The product shown in the picture may differ from the product sold.
Globe Valve DN32(1 1/4") H270
Article-No.: 01322P3242.0011
Price
POR
Description
Cryogenic globe valve angle type DN32 PN50
for cryogenic gases in TPED 2010/35/EU
cleaned and degreased for oxygen service
with bonnet extension H=270mm
all. working temperature -196°C till +120°C
body 1.4308
bonnet CC493K
gland packing graphit/PTFE
connection butt weld for pipe ø42,4mm x 2,0mm
face to face 60mm
for cryogenic gases in TPED 2010/35/EU
cleaned and degreased for oxygen service
with bonnet extension H=270mm
all. working temperature -196°C till +120°C
body 1.4308
bonnet CC493K
gland packing graphit/PTFE
connection butt weld for pipe ø42,4mm x 2,0mm
face to face 60mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 01322P3242.0011 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_01322 |
| Type (Series) | 01322 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 32 |
| Nominal pressure | PN 50 |
| max. lift | 36.0 |
| Kvs-value | 32.0 MQH |
| body material | 1.4308 |
| CV-Value | 37,2 gal/min |
| China approval | TS2700G39-2029 |
| installation height | 270.0 MMT |
| Connection dimension inlet | 42,4 x 2,0 |
| Connection dimension outlet | 42,4 X 2,0 |
| Connection inlet | welding end |
| Connection outlet | welding end |
| Disc seal | PTFE/Kohle |
| Approval | TPED 2010/35/EU |
| Handwheelmaterial and color | Aluminium, weiß |
| Taper function | absperrbare Funktion |
