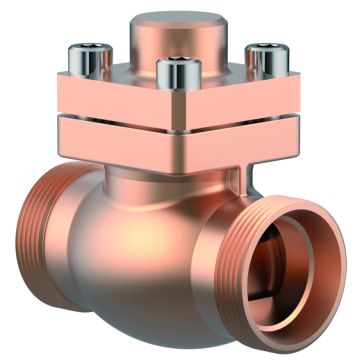

Check Valve DN32(1 1/4") H87
Click on the product image for a larger view.
Check Valve DN32(1 1/4") H87
Article-No.: 05411.0320.8001
Price
POR
Description
cryogenic check valve DN32 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
bonnet CW614N
spring CW452K bronze opening pressure appr. 0.1bar
connection male thread M55 x 2mm
face to face 115mm
height 87mm
seal disc PTFE/25%carbon filled
Leakage rates will be provided on request
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
bonnet CW614N
spring CW452K bronze opening pressure appr. 0.1bar
connection male thread M55 x 2mm
face to face 115mm
height 87mm
seal disc PTFE/25%carbon filled
Leakage rates will be provided on request
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 05411.0320.8001 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_05411_1 |
| Type (Series) | 05411 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| Opening pressure difference | 0,1 bar |
| nominal size | DN 32 |
| Nominal pressure | PN 50 |
| max. lift | 15.0 |
| Kvs-value | 12.1 MQH |
| body material | CC491K |
| CV-Value | 14,1 gal/min |
| China approval | TS2700G39-2025 |
| Connection dimension inlet | M55 X 2,0 |
| Connection dimension outlet | M55 X 2,0 |
| Connection inlet | male thread for metric |
| Connection outlet | metric male thread |
Spare parts and Accessories
Related Type
Datasheet ID: CR_05411_1
